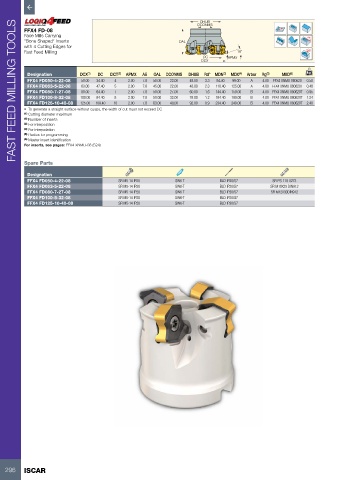

Page 298 - ISCAR(MILLINGCATALOG 38_2021)
P. 298

DHUB
      FAST FEED MILLING TOOLS
                                                                      DCONMS

          FFX4 FD-08
          Face Mills Carrying                                                                                Rd°
          "Bone Shaped” Inserts                                 OAL
          with 4 Cutting Edges for
          Fast Feed Milling                                                         18˚
                                                                        DC       APMX
                                                                        DCX
           Designation       DCX (1)  DC  CICT (2)  APMX  AE  OAL  DCONMS  DHUB  Rd° MDN (3)  MDX (4)  Arbor  Rg (5)  MIID (6)  kg
           FFX4 FD050-4-22-08  50.00  34.40  4  2.00  7.8  50.00  22.00  48.00  3.3  84.40  99.00  A  4.00  FFX4 XNMU 080620  0.58
           FFX4 FD063-5-22-08  63.00  47.40  5  2.00  7.8  45.00  22.00  48.00  2.3  110.40  125.00  A  4.00 FFX4 XNMU 080620T  0.48
           FFX4 FD080-7-27-08  80.00  64.40  7  2.00  7.8  50.00  27.00  60.00  1.6  144.40  159.00  B  4.00 FFX4 XNMU 080620T  0.95
           FFX4 FD100-8-32-08  100.00  84.40  8  2.00  7.8  50.00  32.00  78.00  1.2  184.40  199.00  B  4.00 FFX4 XNMU 080620T  1.24
           FFX4 FD125-10-40-08  125.00  109.40  10  2.00  7.8  63.00  40.00  92.00  0.9  234.40  249.00  B  4.00 FFX4 XNMU 080620T  2.40
          •  To generate a straight surface without cusps, the width of cut must not exceed DC
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  For interpolation
          (4)  For interpolation
          (5)  Radius for programming
          (6)  Master insert identification
          For inserts, see pages: FFX4 XNMU-08 (524)


          Spare Parts

           Designation
           FFX4 FD050-4-22-08              SR M5-14 IP20       SW6-T          BLD IP20/S7        SR PS 118-0273
           FFX4 FD063-5-22-08              SR M5-14 IP20       SW6-T          BLD IP20/S7       SR M10X25 DIN912
           FFX4 FD080-7-27-08              SR M5-14 IP20       SW6-T          BLD IP20/S7       SR M12X30DIN912
           FFX4 FD100-8-32-08              SR M5-14 IP20       SW6-T          BLD IP20/S7
           FFX4 FD125-10-40-08             SR M5-14 IP20       SW6-T          BLD IP20/S7
