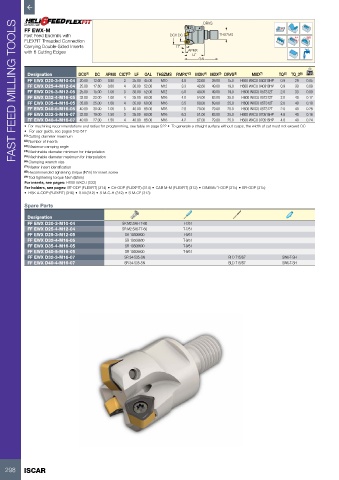

P. 300

FAST FEED MILLING TOOLS
                                                                        DRVS

          FF EWX-M
          Fast Feed Endmills with                            DCX  DC          THSZMS                     Rd°
          FLEXFIT Threaded Connection
          Carrying Double-Sided Inserts                        17˚
          with 6 Cutting Edges                                     APMX
                                                                     LF
                                                                       OAL

           Designation       DCX (1)  DC  APMX CICT (2)  LF  OAL  THSZMS  RMPX° (3)  MDN (4)  MDX (5)  DRVS (6)  MIID (7)  TQ (8)  TQ_3 (9)  kg
           FF EWX D20-3-M10-04  20.00  12.60  0.80  3  25.00 45.00  M10  4.8  32.60  39.00  15.0  H600 WXCU 040310HP  0.9  29  0.05
           FF EWX D25-4-M12-04  25.00  17.60  0.80  4  30.00 52.00  M12  3.3  42.60  49.00  19.0  H600 WXCU 040310HP  0.9  33  0.09
           FF EWX D25-3-M12-05  25.00  15.00  1.00  3  30.00 52.00  M12  5.0  40.00  49.00  19.0  H600 WXCU 05T312T  2.0  33  0.09
           FF EWX D32-4-M16-05  32.00  22.00  1.00  4  35.00 60.00  M16  4.0  54.00  63.00  25.0  H600 WXCU 05T312T  2.0  40  0.17
           FF EWX D35-4-M16-05  35.00  25.00  1.00  4  35.00 60.00  M16  3.5  60.00  69.00  25.0  H600 WXCU 05T312T  2.0  40  0.19
           FF EWX D40-5-M16-05  40.00  30.00  1.00  5  40.00 65.00  M16  2.8  70.00  79.00  25.0  H600 WXCU 05T312T  2.0  40  0.26
           FF EWX D32-3-M16-07  32.00  19.00  1.50  3  35.00 60.00  M16  6.3  51.00  63.00  25.0  H600 WXCU 070515HP  4.8  40  0.16
           FF EWX D40-4-M16-07  40.00  27.00  1.50  4  40.00 65.00  M16  4.2  67.00  79.00  25.0  H600 WXCU 070515HP  4.8  40  0.24
          •  For machining recommendations and radius for programming, see table on page 522 •  To generate a straight surface without cusps, the width of cut must not exceed DC
          •   For user guide, see pages 542-547
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  Maximum ramping angle
          (4)  Machinable diameter minimum for interpolation
          (5)  Machinable diameter maximum for interpolation
          (6)  Clamping wrench size
          (7)  Master insert identification
          (8)  Recommended tightening torque (N*m) for insert screw
          (9)  Tool tightening torque Nxm (lbfxin)
          For inserts, see pages: H600 WXCU (522)
          For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
          •  HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
          Spare Parts

           Designation
           FF EWX D20-3-M10-04              SR M2.5X6-T7-60      T-7/51
           FF EWX D25-4-M12-04              SR M2.5X6-T7-60      T-7/51
           FF EWX D25-3-M12-05               SR 10508600         T-9/51
           FF EWX D32-4-M16-05               SR 10508600         T-9/51
           FF EWX D35-4-M16-05               SR 10508600         T-9/51
           FF EWX D40-5-M16-05               SR 10508600         T-9/51
           FF EWX D32-3-M16-07               SR 34-535-SN                        BLD T15/S7         SW6-T-SH
           FF EWX D40-4-M16-07               SR 34-535-SN                        BLD T15/S7         SW6-T-SH
