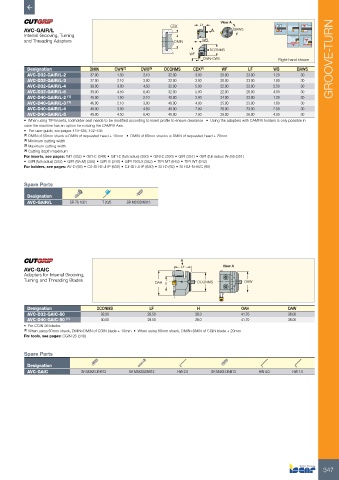

Page 349 - ISCAR(TURNING-CATALOG-42-2022)

LF View A
AVC-GAIR/L CDX A BAWS
Internal Grooving, Turning
and Threading Adapters DMIN WB
DCONMS
WF
CWN-CWX Right-hand shown GROOVE-TURN
Designation DMIN CWN (2) CWX (3) DCONMS CDX (4) WF LF WB BAWS
AVC-D32-GAIR/L-2 37.00 1.50 2.10 32.00 3.00 20.00 23.00 1.20 30
AVC-D32-GAIR/L-3 37.00 2.10 3.00 32.00 3.00 20.00 23.00 1.80 30
AVC-D32-GAIR/L-4 39.00 3.00 4.50 32.00 5.00 22.00 23.00 2.50 30
AVC-D32-GAIR/L-5 39.00 4.50 6.40 32.00 5.00 22.00 26.00 4.00 30
AVC-D40-GAIR/L-2 (1) 45.00 1.50 2.10 40.00 3.00 24.00 23.00 1.20 30
AVC-D40-GAIR/L-3 (1) 46.00 2.10 3.00 40.00 4.00 25.00 23.00 1.80 30
AVC-D40-GAIR/L-4 49.00 3.00 4.50 40.00 7.00 28.00 23.00 2.50 30
AVC-D40-GAIR/L-5 49.00 4.50 6.40 40.00 7.00 28.00 26.00 4.00 30
• When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • Using the adapters with CAMFIX holders is only possible in
case the machine has an option for rotating the CAMFIX Axis.
• For user guide, see pages 419-428, 432-436
(1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm
(2) Minimum cutting width
(3) Maximum cutting width
(4) Cutting depth maximum
For inserts, see pages: GIFI (352) • GIFI-E (349) • GIFI-E (full radius) (350) • GINI-E (350) • GIPI (351) • GIPI (full radius W<M) (351)
• GIPI (full radius) (352) • GIPI (W<M) (350) • GIPI-E (349) • GIPI-RX/LX (352) • TIPI-MT (648) • TIPI-WT (642)
For holders, see pages: AV-D (93) • C#-SH-E-JHP (630) • C#-SH-JHP (630) • SH-D (92) • SH-S#-N-AVC (90)

Spare Parts
Designation
AVC-GAIR/L SR 76-1021 T-20/5 SR M3X3DIN913

A
AVC-GAIC LF View A
Adapters for Internal Grooving,
Turning and Threading Blades OAW
OAH H DCONMS

Designation DCONMS LF H OAH OAW
AVC-D32-GAIC-50 32.00 29.50 26.0 41.70 36.00
AVC-D40-GAIC-50 (1) 40.00 29.50 26.0 41.70 36.00
• For CGIN 26 blades
(1) When using 50mm shank, DMIN=DMIN of CGIN blade + 10mm • When using 60mm shank, DMIN=DMIN of CGIN blade + 20mm
For tools, see pages: CGIN 26 (348)

Spare Parts

Designation
AVC-GAIC SR M3X8 DIN913 SR M5X20DIN912 HW 2.0 SR M4X8 DIN913 HW 4.0 HW 1.5

347
