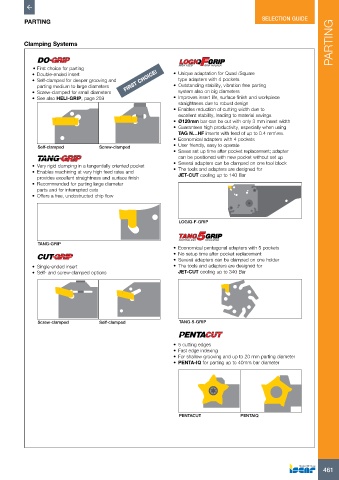

SELECTION GUIDE
          PARTING
                                                                                                                      PARTING


         Clamping Systems



             • First choice for parting
            •  Double-ended insert                            •  Unique adaptation for Quad /Square
            •  Self-clamped for deeper grooving and   FIRST CHOICE!  type adapters with 4 pockets
              parting medium to large diameters               •  Outstanding stability, vibration free parting
            •  Screw-clamped for small diameters                system also on big diameters
            •  See also HELI-GRIP, page 259                   •  Improves insert life, surface finish and workpiece
                                                                straightness due to robust design
                                                              •  Enables reduction of cutting width due to
                                                                excellent stability, leading to material savings
                                                              •  Ø120mm bar can be cut with only 3 mm insert width
                                                              •  Guarantees high productivity, especially when using
                                                                TAG N…HF inserts with feed of up to 0.4 mm\rev.
                                                              •  Economical adapters with 4 pockets
              Self-clamped          Screw-clamped             •  User friendly, easy to operate
                                                              •  Saves set up time after pocket replacement; adapter
                                                                can be positioned with new pocket without set up
                                                              •  Several adapters can be clamped on one tool block
            •  Very rigid clamping in a tangentially oriented pocket  •  The tools and adapters are designed for
            •  Enables machining at very high feed rates and
              provides excellent straightness and surface finish  JET-CUT cooling up to 140 Bar
            •  Recommended for parting large diameter
              parts and for interrupted cuts
            •  Offers a free, unobstructed chip flow




                                                                LOGIQ-F-GRIP



              TANG-GRIP
                                                              •  Economical pentagonal adapters with 5 pockets
                                                              •  No setup time after pocket replacement
                                                              •  Several adapters can be clamped on one holder
            •  Single-ended insert                            •  The tools and adapters are designed for
            •  Self- and screw-clamped options                  JET-CUT cooling up to 340 Bar









              Screw-clamped         Self-clamped                TANG-5-GRIP



                                                              •  5 cutting edges
                                                              •  Fast edge indexing
                                                              •  For shallow grooving and up to 20 mm parting diameter
                                                              •  PENTA-IQ for parting up to 40mm bar diameter









                                                                PENTACUT              PENTAIQ
