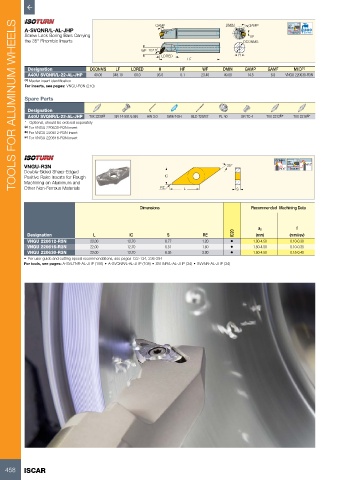

DMIN
      TOOLS FOR ALUMINUM WHEELS
                                                                                                      MAX
          A-SVQNR/L-AL-JHP                              GAMF                            GAMP          35°
          Screw Lock Boring Bars Carrying                                                HF            107.5º  Bar Max
          the 35° Rhombic Inserts                                                     DCONMS
                                                   WF 107.5˚
                                                          LDRED                      H
                                                                   LF
           Designation           DCONMS   LF   LDRED     H      HF      WF     DMIN    GAMP    GAMF     MIID (1)
           A40U SVQNR/L-22-AL-JHP  40.00  348.10  60.0  36.0    0.1     23.40   49.00   14.5    6.5  VNGU 220630-R3N
          (1)  Master insert identification
          For inserts, see pages: VNGU-R3N (210)

          Spare Parts

           Designation
           A40U SVQNR/L-22-AL-JHP  TVX 2230 (a)  SR 14-591/L-SN  HW 3.0  SW6-T-SH  BLD T20/S7  PL 40  SR TC-4  TVX 2212 *  TVX 2216 *
                                                                                                   (b)
                                                                                                             (c)
          *  Optional, should be ordered separately
          (a)  For VNGU 220630-R3N insert
          (b)  For VNGU 220612-R3N insert
          (c)  For VNGU 220616-R3N insert
                                                                                                  70°MAX

                                                                                                      MAX
          VNGU-R3N                                                               35°               72.5 º  35° 107.5º  107.5 º
          Double-Sided Sharp-Edged
          Positive Rake Inserts for Rough                  IC
          Machining on Aluminum and
          Other Non-Ferrous Materials                    RE       L                 S


                                                  Dimensions                             Recommended  Machining Data



                                                                                            ap           f
           Designation            L           IC            S           RE         IC20    (mm)        (mm/rev)
           VNGU 220612-R3N       22.00        12.70        6.77         1.20      •       1.00-4.50    0.10-0.30
           VNGU 220616-R3N       22.00        12.70        6.51         1.60      •       1.50-4.50    0.10-0.35
           VNGU 220630-R3N       22.00        12.70        6.35         3.00      •       1.50-4.50    0.15-0.40
          •  For user guide and cutting speed recommendations, see pages 122-134, 236-254
          For tools, see pages: A-SVLFNR-AL-JHP (108) • A-SVQNR/L-AL-JHP (108) • SVHNR/L-AL-JHP (34) • SVVNN-AL-JHP (34)
