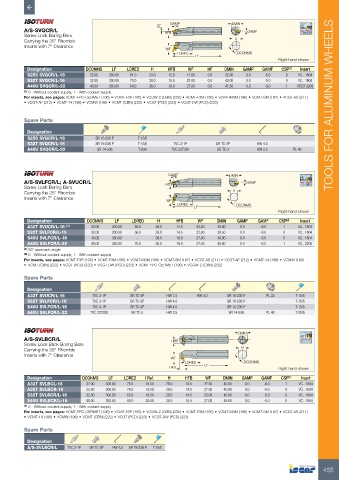

GAMP DMIN
MAX
A/S-SVQCR/L HF GAMF 35°
Screw Lock Boring Bars HFB 107.5º
Carrying the 35° Rhombic H
Inserts with 7° Clearance
WF
LDRED DCONMS
LF
Right-hand shown

Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP GAMF CSP (1) Insert
S25S SVQCR/L-16 25.00 250.00 61.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 0 VC.. 1604
S32T SVQCR/L-16 32.00 300.00 70.0 30.0 15.0 22.00 0.0 40.00 0.0 -5.0 0 VC.. 1604
A40U SVQCR/L-22 40.00 350.00 64.0 36.0 18.0 27.00 0.0 47.50 0.0 -8.0 1 VCGT 2205
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211)
• VCGT-AF (212) • VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) TOOLS FOR ALUMINUM WHEELS

Spare Parts
Designation
S25S SVQCR/L-16 SR 16-236 P T-15/5
S32T SVQCR/L-16 SR 16-236 P T-15/5 TVC 3-1P SR TC-3P HW 4.0
A40U SVQCR/L-22 SR 14-536 T-20/5 TVC 22T330 SR TC-3 HW 2.5 PL 40

GAMP DMIN 48°
A/S-SVLFCR/L; A-SVUCR/L HFB GAMF MAX
Screw Lock Boring Bars 95º
Carrying the 35° Rhombic H
Inserts with 7° Clearance
WF
LDRED DCONMS
LF
Right-hand shown
Designation DCONMS LF LDRED H HFB WF DMIN GAMP GAMF CSP (2) Insert
A32T SVUCR/L-16 (1) 32.00 300.00 50.0 29.0 14.5 22.00 40.00 0.0 -8.0 1 VC.. 1604
S32T SVLFCR/L-16 32.00 300.00 56.0 29.0 14.5 22.00 39.50 0.0 -8.0 0 VC.. 1604
S40U SVLFCR/L-16 40.00 350.00 - 36.0 18.0 27.00 49.00 0.0 -5.0 0 VC.. 1604
A40U SVLFCR/L-22 40.00 350.00 70.0 36.0 18.0 27.00 48.00 0.0 -8.0 1 VC.. 2205
(1) 93° approach angle
(2) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-F3P (195) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211) • VCGT-AF (212) • VCMT-14 (198) • VCMW (198)
• VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223) • VCMT-FPC-CERMET (196) • VCGW-2 (CBN) (232)

Spare Parts

Designation
A32T SVUCR/L-16 TVC 3-1P SR TC-3P HW 1.5 HW 4.0 SR 16-236 P PL 32 T-15/5
S32T SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5
S40U SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5
A40U SVLFCR/L-22 TVC 22T330 SR TC-3 HW 2.5 SR 14-536 PL 40 T-20/5

DMIN

A/S-SVLBCR/L HFB 95 º
Screw Lock Back Boring Bars
Carrying the 35° Rhombic H
Inserts with 7° Clearance
WF
LDRED DCONMS
l Ref. LF Right-hand shown
Designation DCONMS LF LDRED l Ref. H HFB WF DMIN GAMP GAMF CSP (1) Insert
A32T SVLBCL-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 0.0 -8.0 1 VC.. 1604
A32T SVLBCR-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 0.0 -8.0 0 VC.. 1604
S32T SVLBCR/L-16 32.00 300.00 63.2 18.50 29.0 14.5 22.00 40.00 0.0 -8.0 0 VC.. 1604
S40U SVLBCR/L-16 40.00 350.00 60.0 20.00 36.0 18.0 27.00 49.50 0.0 -5.0 0 VC.. 1604
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-FPC-CERMET (196) • VCMT-F3P (195) • VCGW-2 (CBN) (232) • VCMT-F3M (195) • VCMT-M3M (196) • VCMT-SM (197) • VCGT-AS (211)
• VCMT-14 (198) • VCMW (198) • VCMT (CBN) (222) • VCGT (PCD) (223) • VCGT-DW (PCD) (223)

Spare Parts
Designation
A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5
