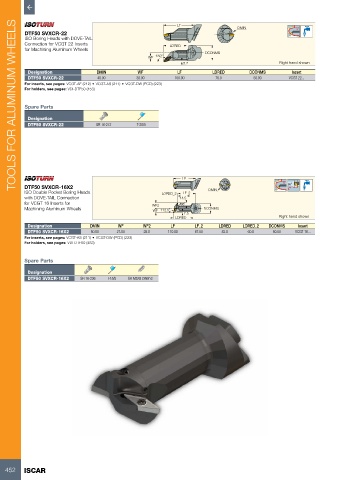

Page 454 - ISCAR(TURNING-CATALOG-42-2022)

LF DMIN
TOOLS FOR ALUMINUM WHEELS
DTF50 SVXCR-22
ISO Boring Heads with DOVE-TAIL
Connection for VCGT 22 Inserts LDRED
for Machining Aluminum Wheels
DCONMS
WF 130°
5.7 Right hand shown
Designation DMIN WF LF LDRED DCONMS Insert
DTF50 SVXCR-22 40.00 30.00 100.00 76.0 50.00 VCGT 22...
For inserts, see pages: VCGT-AF (212) • VCGT-AS (211) • VCGT-DW (PCD) (223)
For holders, see pages: VDI-DTF50 (453)

Spare Parts
Designation
DTF50 SVXCR-22 SR 16-212 T-20/5

LF
DTF50 SVXCR-16X2 95 º
ISO Double Pocket Boring Heads LDRED_2 LF_2 DMIN
with DOVE-TAIL Connection 14.5
for VCGT 16 Inserts for WF2 95˚
Machining Aluminum Wheels WF 112.5˚ DCONMS
7.5
LDRED Right hand shown
Designation DMIN WF WF2 LF LF_2 LDRED LDRED_2 DCONMS Insert
DTF50 SVXCR-16X2 50.00 21.00 28.0 110.00 87.00 83.0 60.0 50.00 VCGT 16...
For inserts, see pages: VCGT-AS (211) • VCGT-DW (PCD) (223)
For holders, see pages: VDI-DTF50 (453)

Spare Parts

Designation
DTF50 SVXCR-16X2 SR 16-236 T-15/5 SR M5X8 DIN913
