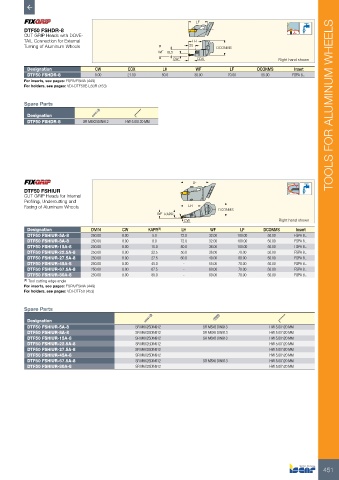

Page 453 - ISCAR(TURNING-CATALOG-42-2022)

LF
DTF50 FSHDR-8
CUT GRIP Heads with DOVE-
TAIL Connection for External LH
Turning of Aluminum Wheels 25 DCONMS
WF 18.5
CW CDX Right hand shown
Designation CW CDX LH WF LF DCONMS Insert
DTF50 FSHDR-8 8.00 21.50 50.0 30.00 70.00 55.00 FSPA 8...
For inserts, see pages: FSPA/FSMA (449)
For holders, see pages: VDI-DTF50E-L60R (453)

Spare Parts TOOLS FOR ALUMINUM WHEELS

Designation
DTF50 FSHDR-8 SR M6X25DIN912 HW 5.0X120 MM

LF
DTF50 FSHIUR
CUT GRIP Heads for Internal
Profiling, Undercutting and
Facing of Aluminum Wheels LH
DCONMS
WF KAPR
CW Right hand shown
Designation DMIN CW KAPR (1) LH WF LF DCONMS Insert
DTF50 FSHIUR-5A-8 250.00 8.00 5.0 72.0 32.00 100.00 50.00 FSPA 8...
DTF50 FSHIUR-8A-8 250.00 8.00 8.0 72.0 32.00 100.00 50.00 FSPA 8...
DTF50 FSHIUR-15A-8 250.00 8.00 15.0 80.0 36.00 100.00 50.00 FSPA 8...
DTF50 FSHIUR-22.5A-8 250.00 8.00 22.5 50.0 36.00 70.00 50.00 FSPA 8...
DTF50 FSHIUR-27.5A-8 250.00 8.00 27.5 60.0 40.00 80.00 50.00 FSPA 8...
DTF50 FSHIUR-45A-8 250.00 8.00 45.0 - 55.00 70.00 50.00 FSPA 8...
DTF50 FSHIUR-67.5A-8 250.00 8.00 67.5 - 60.00 70.00 50.00 FSPA 8...
DTF50 FSHIUR-80A-8 250.00 8.00 80.0 - 60.00 70.00 50.00 FSPA 8...
(1) Tool cutting edge angle
For inserts, see pages: FSPA/FSMA (449)
For holders, see pages: VDI-DTF50 (453)

Spare Parts

Designation
DTF50 FSHIUR-5A-8 SR M6X25DIN912 SR M5X6 DIN913 HW 5.0X120 MM
DTF50 FSHIUR-8A-8 SR M6X25DIN912 SR M6X6 DIN913 HW 5.0X120 MM
DTF50 FSHIUR-15A-8 SR M6X25DIN912 SR M6X6 DIN913 HW 5.0X120 MM
DTF50 FSHIUR-22.5A-8 SR M6X25DIN912 HW 5.0X120 MM
DTF50 FSHIUR-27.5A-8 SR M6X25DIN912 HW 5.0X120 MM
DTF50 FSHIUR-45A-8 SR M6X25DIN912 HW 5.0X120 MM
DTF50 FSHIUR-67.5A-8 SR M6X25DIN912 SR M5X6 DIN913 HW 5.0X120 MM
DTF50 FSHIUR-80A-8 SR M6X25DIN912 HW 5.0X120 MM

451
