P. 452

OAL

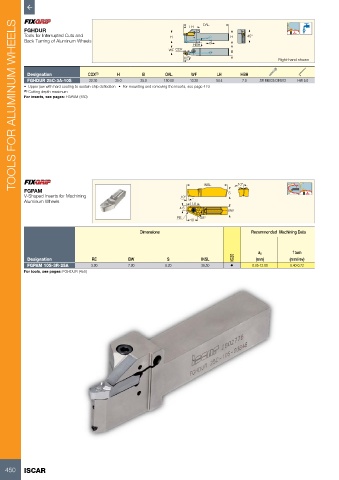

      TOOLS FOR ALUMINUM WHEELS
          FGHDUR                                                    LH
          Tools for Interrupted Cuts and                     H                    H     45°
          Back Turning of Aluminum Wheels
                                                                     HBH   8
                                                            WF CDX                B
                                                                  62°                              Right-hand shown


           Designation          CDX (1)   H        B       OAL      WF       LH      HBH
           FGHDUR 25C-3A-10S    22.30     25.0    25.0     150.00   13.30    54.4     7.0   SR M6X25 DIN912  HW 5.0
          •  Upper jaw with hard coating to sustain chip deflection   •  For mounting and removing the inserts, see page 419
          (1)  Cutting depth maximum
          For inserts, see pages: FGPAM (450)















                                                                         INSL        10°
          FGPAM                                                                  S
          V-Shaped Inserts for Machining                        10°
          Aluminum Wheels                                           11.8
                                                                4.5
                                                                                 BW
                                                               RE      25°
                                                                    10
                                                  Dimensions                             Recommended  Machining Data



                                                                                            ap          f turn
           Designation           RE           BW            S           INSL       IC20    (mm)        (mm/rev)
           FGPAM 10S-3R-25A      3.00         7.00         8.20         36.50     •       0.05-12.00   0.40-0.72
          For tools, see pages: FGHDUR (450)
