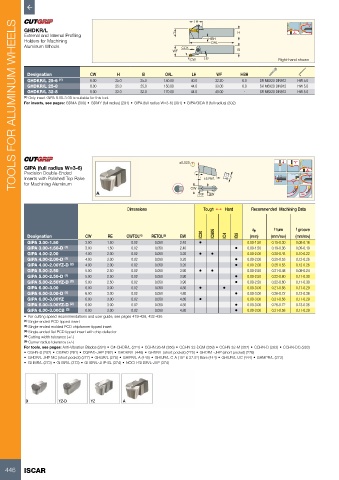

P. 448

LH
      TOOLS FOR ALUMINUM WHEELS
          GHDKR/L                                                                   H
          External and Internal Profiling                     H
          Holders for Machining                                           HBH
                                                                           OAL
          Aluminum Wheels                                        CDX
                                                              WF                    B
                                                                    CW   15°                       Right-hand shown

           Designation           CW       H        B       OAL      LH       WF      HBH
           GHDKR/L 25-6  (1)     6.00     25.0    25.0     150.00   40.0     32.20    6.0   SR M6X20 DIN912  HW 5.0
           GHDKR/L 25-8          8.00     25.0    25.0     150.00   44.0     33.00    6.0   SR M6X20 DIN912  HW 5.0
           GHDKR/L 32-8          8.00     32.0    32.0     170.00   44.0     40.00     -    SR M6X20 DIN912  HW 5.0
          (1)  Only insert GIPA 6.00-3.00 is suitable for this tool.
          For inserts, see pages: GDMA (300) • GDMY (full radius) (291) • GIPA (full radius W=3-6) (301) • GIPA/GIDA 8 (full radius) (302)










                                                                ±0.025
          GIPA (full radius W=3-6)
          Precision Double-Ended                                     7°
          Inserts with Polished Top Rake                                 15 Ref.  5
          for Machining Aluminum
                                                                    CW
                                                                       RE  BW

                                              Dimensions                Tough 1   Hard   Recommended  Machining Data



                                                                                                 f turn
                                                                                                         f groove
                                                                                          ap
           Designation         CW      RE    CWTOL (4)  RETOL (5)  BW   IC20  IC806  IC4  ID5  (mm)  (mm/rev)  (mm/rev)
           GIPA 3.00-1.50      3.00    1.50    0.02    0.050    2.40   •                0.00-1.50  0.15-0.30  0.08-0.16
           GIPA 3.00-1.50-D  (1)  3.00  1.50   0.02    0.050    2.40               •    0.00-1.50  0.19-0.36  0.09-0.19
           GIPA 4.00-2.00      4.00    2.00    0.02    0.050    3.20   •   •            0.00-2.00  0.20-0.43  0.10-0.22
           GIPA 4.00-2.00-D  (1)  4.00  2.00   0.02    0.050    3.20               •    0.00-2.00  0.25-0.53  0.12-0.26
           GIPA 4.00-2.00YZ-D  (2)  4.00  2.00  0.02   0.050    3.20               •    0.00-2.00  0.25-0.53  0.12-0.26
           GIPA 5.00-2.50      5.00    2.50    0.02    0.050    3.90   •   •            0.00-2.50  0.21-0.48  0.09-0.24
           GIPA 5.00-2.50-D  (1)  5.00  2.50   0.02    0.050    3.90               •    0.00-2.50  0.22-0.60  0.11-0.30
           GIPA 5.00-2.50YZ-D  (2)  5.00  2.50  0.02   0.050    3.90               •    0.00-2.50  0.22-0.60  0.11-0.30
           GIPA 6.00-3.00      6.00    3.00    0.02    0.050    4.80   •       •        0.00-3.00  0.21-0.58  0.11-0.29
           GIPA 6.00-3.00-D  (1)  6.00  3.00   0.02    0.050    4.80               •    0.00-3.00  0.26-0.72  0.13-0.36
           GIPA 6.00-3.00YZ    6.00    3.00    0.02    0.050    4.80   •                0.00-3.00  0.21-0.58  0.11-0.29
           GIPA 6.00-3.00YZ-D  (2)  6.00  3.00  0.02   0.050    4.80               •    0.00-3.00  0.26-0.72  0.13-0.36
           GIPA 6.00-3.00CB  (3)  6.00  3.00   0.02    0.050    4.80               •    0.00-3.00  0.21-0.58  0.11-0.29
          •  For cutting speed recommendations and user guide, see pages 419-428, 432-436
          (1)  Single-ended PCD tipped insert
          (2)  Single-ended molded PCD chipformer tipped insert
          (3)  Single-ended flat PCD tipped insert with chip deflector
          (4)  Cutting width tolerance (+/-)
          (5)  Corner radius tolerance (+/-)
          For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
          • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDKR/L (446) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)
          •  GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHIFR/L-A (445) • GHIUR/L-C-A (15° & 27.5°) Bars (444) • GHIUR/L-UC (444) • GHMPR/L (273)
          •  GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)




















   446    ISCAR
