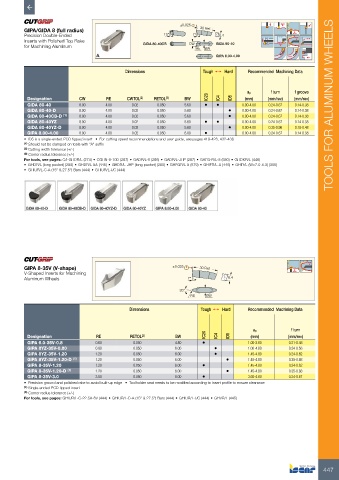

±0.025
          GIPA/GIDA 8 (full radius)                                    30 Ref.
          Precision Double-Ended                           10°       7°       6.4
            Inserts with Polished Top Rake
          for Machining Aluminum                   GIDA 80-40CB    CW  RE  BW  GIDA 80-40
                                                                             GIPA 8.00-4.00

                                             Dimensions                 Tough 1   Hard  Recommended  Machining Data



                                                                                        ap      f turn   f groove
           Designation       CW       RE      CWTOL (2)  RETOL (3)  BW    IC20  IC4  ID5  (mm)  (mm/rev)  (mm/rev)
           GIDA 80-40        8.00     4.00     0.02     0.050     5.60   •   •        0.00-4.00  0.24-0.67  0.14-0.38 TOOLS FOR ALUMINUM WHEELS
           GIDA 80-40-D      8.00     4.00     0.02     0.050     5.60           •    0.00-4.00  0.24-0.67  0.14-0.38
           GIDA 80-40CB-D  (1)  8.00  4.00     0.02     0.050     5.60           •    0.00-4.00  0.24-0.67  0.14-0.38
           GIDA 80-40YZ      8.00     4.00     0.02     0.050     5.60   •   •        0.00-4.00  0.24-0.67  0.14-0.38
           GIDA 80-40YZ-D    8.00     4.00     0.02     0.050     5.60           •    0.00-4.00  0.35-0.96  0.18-0.48
           GIPA 8.00-4.00    8.00     4.00     0.02     0.050     6.00   •            0.00-4.00  0.24-0.67  0.14-0.38
          •  ID5 is a single-ended PCD tipped insert   •  For cutting speed recommendations and user guide, see pages 419-428, 432-436
          (1)  Should not be clamped on tools with "A" suffix
          (2)  Cutting width tolerance (+/-)
          (3)  Corner radius tolerance (+/-)
          For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDKR/L (446)
          •  GHDR/L (long pocket) (285) • GHDR/L-8A (445) • GHDR/L-JHP (long pocket) (285) • GHFGR/L-8 (579) • GHIFR/L-A (445) • GHIR/L (W=7.0-8.3) (355)
          •  GHIUR/L-C-A (15° & 27.5°) Bars (444) • GHIUR/L-UC (444)

















          GIPA 8-35V (V-shape)                                ±0.025   30 Ref.
          V-Shaped Inserts for Machining
          Aluminum Wheels                                          7°            6.4

                                                                35°
                                                                    RE   BW

                                               Dimensions               Tough 1   Hard  Recommended  Machining Data



                                                                                          ap           f turn
           Designation             RE          RETOL (2)       BW        IC20  IC4  ID5  (mm)         (mm/rev)
           GIPA 6.0-35V-0.8        0.80         0.050          4.80     •               1.00-3.60     0.21-0.48
           GIPA 8YZ-35V-0.80       0.80         0.050          6.00         •           1.00-4.80     0.24-0.56
           GIPA 8YZ-35V-1.20       1.20         0.050          6.00         •           1.45-4.80     0.24-0.62
           GIPA 8YZ-35V-1.20-D  (1)  1.20       0.050          6.00             •       1.45-4.80     0.35-0.88
           GIPA 8-35V-1.20         1.20         0.050          6.00     •               1.45-4.80     0.24-0.62
           GIPA 8-35V-1.20-D  (1)  1.20         0.050          6.00             •       1.45-4.80     0.35-0.88
           GIPA 8-35V-3.0          3.00         0.050          6.00     •               3.60-4.80     0.24-0.67
          •  Precision ground and polished rake to avoid built-up edge   •  Toolholder seat needs to be modified according to insert profile to ensure clearance
          (1)  Single-ended PCD tipped insert
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: GHIUR/L-C-22.5A-8V (444) • GHIUR/L-C-A (15° & 27.5°) Bars (444) • GHIUR/L-UC (444) • GHVR/L (445)
