USER GUIDE
          PARTING
                                                                                                                      PARTING

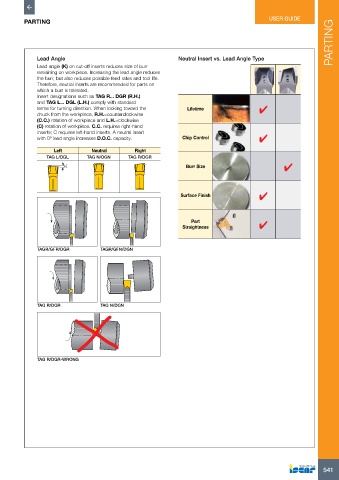

              Lead Angle                                        Neutral Insert vs. Lead Angle Type
              Lead angle (K) on cut-off inserts reduces size of burr
              remaining on workpiece. Increasing the lead angle reduces
              the burr, but also reduces possible feed rates and tool life.
              Therefore, neutral inserts are recommended for parts on
              which a burr is tolerated.
              Insert designations such as TAG R... DGR (R.H.)
              and TAG L... DGL (L.H.) comply with standard
              terms for turning direction. When looking toward the   Lifetime               4
              chuck from the workpiece, R.H.=counterclockwise
              (C.C.) rotation of workpiece and L.H.=clockwise
              (C) rotation of workpiece. C.C. requires right-hand
              inserts; C requires left-hand inserts. A neutral insert
              with 0º lead angle increases D.O.C. capacity.      Chip Control               4
                    Left         Neutral        Right
                 TAG L/DGL      TAG N/DGN     TAG R/DGR
                        K                                         Burr Size                          4




                                                                Surface Finish              4




                                                                    Part
                                                                 Straightness               4



              TAGR/GFR/DGR          TAGR/GFN/DGN










              TAG R/DGR             TAG N/DGN










              TAG R/DGR-WRONG
