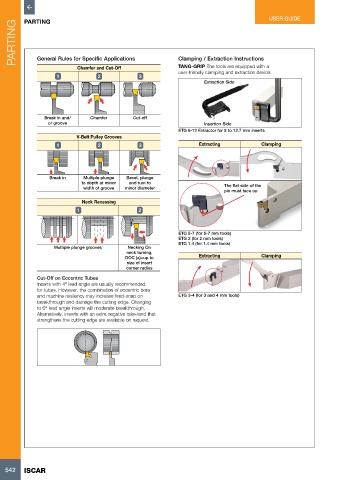

USER GUIDE
          PARTING
      PARTING





              General Rules for Specific Applications
                                                                TANG-GRIP The tools are equipped with a
                            Chamfer and Cut-Off                 Clamping / Extraction Instructions
                                                                user-friendly clamping and extraction device.
                     1             2              3
                                                                         Extraction Side





                 Break in and/   Chamfer        Cut-off
                  or groove                                              Insertion Side
                                                                ETG 8-12 Extractor for 8 to 12.7 mm inserts
                            V-Belt Pulley Grooves
                     1             2              3                    Extracting            Clamping





                  Break in    Multiple plunge   Bevel, plunge
                              to depth at minor   and turn to
                              width of groove  minor diameter                   The flat side of the
                                                                                pin must face up
                              Neck Recessing
                            1                     2

                                               a
                                                                ETG 5-7 (for 5-7 mm tools)
                                                                ETG 2 (for 2 mm tools)
                                                                ETG 1.4 (for 1.4 mm tools)
                    Multiple plunge grooves   Necking On
                                             neck turning,
                                             DOC (a)=up to             Extracting            Clamping
                                              size of insert
                                             corner radius
              Cut-Off on Eccentric Tubes
              Inserts with 4º lead angle are usually recommended
              for tubes. However, the combination of eccentric bore
              and machine resiliency may increase feed-snap on   ETG 3-4 (for 3 and 4 mm tools)
              breakthrough and damage the cutting edge. Changing
              to 6º lead angle inserts will moderate breakthrough.
              Alternatively, inserts with an extra negative rake-land that
              strengthens the cutting edge are available on request.
