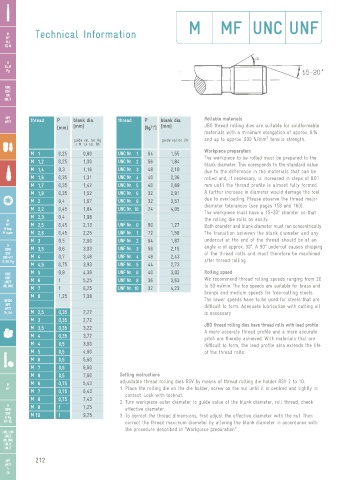

Page 212 - JBO-Katalog-2022

M MF UNC UNF

M Technical Information
MF
MJ
EG M

G
Rc, R
Pg

UNC
UNF
UN
UNJF

NPT Rollable materials
NPTF thread P blank dia. thread P blank dia.
[mm] [mm] [Gg/1“] [mm] JBO thread rolling dies are suitable for cold formable
materials with a minimum elongation of approx. 8 %
2
guide val. tol. 6g guide val.tol. 2A and up to approx. 900 N/mm tensile strength.
≤ M 1,4 tol. 6h
Workpiece preparation
M 1 0,25 0,80 UNC Nr. 1 64 1,55 The workpiece to be rolled must be prepared to the
M 1,2 0,25 1,00 UNC Nr. 2 56 1,84
blank diameter. This coresponds to the standard value
M 1,4 0,3 1,16 UNC Nr. 3 48 2,10 due to the difference in the materials that can be
M 1,6 0,35 1,31 UNC Nr. 4 40 2,36 rolled and, if necessary, is increased in steps of 0.01
M 1,7 0,35 1,42 UNC Nr. 5 40 2,69 mm until the thread profile is almost fully formed.
M 1,8 0,35 1,52 UNC Nr. 6 32 2,91 A further increase in diameter would damage the tool
M 2 0,4 1,67 UNC Nr. 8 32 3,57 due to overloading. Please observe the thread major
M 2,2 0,45 1,84 UNC Nr. 10 24 4,05 diameter tolerances (see pages 158 and 160).
The workpiece must have a 15–20° chamfer so that
M 2,3 0,4 1,98
M the rolling die rolls on easily.
MF M 2,5 0,45 2,13 UNF Nr. 0 80 1,27 Both chamfer and blank diameter must run con centrically.
M keg.
M taper M 2,6 0,45 2,25 UNF Nr. 1 72 1,58 The transition between the blank diameter and any
M 3 0,5 2,60 UNF Nr. 2 64 1,87 undercut at the end of the thread should be at an
G angle a of approx. 30°. A 90° undercut causes chipping
BSW M 3,5 0,6 3,03 UNF Nr. 3 56 2,15
BSF of the thread rolls and must therefore be machined
DIN 477 M 4 0,7 3,46 UNF Nr. 4 48 2,43
R, BA, Pg after thread rolling.
M 4,5 0,75 3,93 UNF Nr. 5 44 2,73
UNC M 5 0,8 4,39 UNF Nr. 6 40 3,02 Rolling speed
UNF 1 5,25 36 3,63 We recommend thread rolling speeds ranging from 20
UNEF M 6 UNF Nr. 8
UN, UNS M 7 1 6,25 UNF Nr. 10 32 4,23 to 50 m/min. The top speeds are suitable for brass and
M 8 1,25 7,08 bronze and medium speeds for free-cutting steels.
NPSM The lower speeds have to be used for steels that are
NPT difficult to form. Adequate lubrication with cutting oil
NPTF
Tr, Rd M 2,5 0,35 2,22 is necessary.
M 3 0,35 2,72
M 3,5 0,35 3,22 JBO thread rolling dies have thread rolls with lead profile
A more accurate thread profile and a more accurate
M 4 0,35 3,72 pitch are thereby achieved. With materials that are
M 4 0,5 3,60 difficult to form, the lead profile also extends the life
M 5 0,5 4,60 of the thread rolls.
M 6 0,5 5,60
M 7 0,5 6,60
M 8 0,5 7,60 Setting instructions
M M 6 0,75 5,43 adjustable thread rolling dies RSV by means of thread rolling die holder RSV 2 to 10.
MF 1. Place the rolling die on the die holder, screw on the nut until it is centred and lightly in
M 7 0,75 6,43 contact. Lock with locknut.
M 8 0,75 7,43 2. Turn workpiece outer diameter to guide value of the blank diameter, roll thread, check
G M 8 1 7,25
BSW effective diameter.
BSF M 10 1 9,25 3. To correct the thread dimensions, first adjust the effective diameter with the nut. Then
R, Pg
MF-EL correct the thread maximum dia meter by altering the blank diameter in accordance with
the procedure described in ”Workpiece preparation”.
UNC, UNF
UNEF
UN, UNS
UNJC
UNJF
