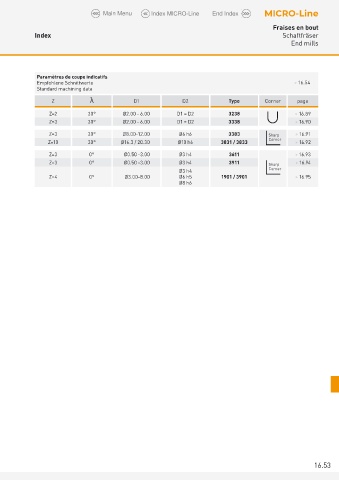

Page 855 - 25-053 APPLITEC catalogue 2025.indb
P. 855
Main Menu Index MICRO-Line End Index MICRO-Line
Fraises en bout
Index Schaftfräser
End mills
Paramètres de coupe indicatifs
Empfohlene Schnittwerte > 16.54
Standard machining data
Z λ D1 D2 Type Corner page
Z=2 30° Ø2.00 - 6.00 D1 = D2 3238 > 16.89
Z=3 30° Ø2.00 - 6.00 D1 = D2 3338 > 16.90
Z=3 30° Ø8.00-12.00 Ø6 h6 3383 Sharp > 16.91
Z=10 30° Ø16.3 / 20.30 Ø10 h6 3831 / 3833 Corner > 16.92
Z=3 0° Ø0.50 -3.00 Ø3 h4 3611 > 16.93
Z=3 0° Ø0.50 -3.00 Ø3 h4 3911 Sharp > 16.94
Ø3 h4 Corner
Z=4 0° Ø3.00-8.00 Ø6 h5 1901 / 3901 > 16.95
Ø8 h6
16.53
