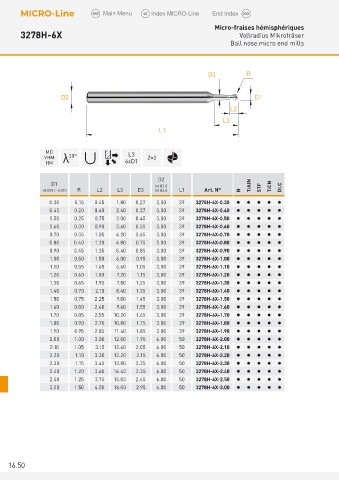

Micro-fraises hémisphériques
3278H-6X Vollradius Mikrofräser
Ball nose micro end mills

D3 R

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Z=2
HM 6xD1
D2
D1 h4 Ø3.0 TiAlN
+0.005 / -0.010 R L 2 L 3 D 3 h5 Ø6.0 L1 Art. N° N STF TiCN DLC
0.30 0.15 0.45 1.80 0.27 3.00 39 3278H-6X-0.30     
0.40 0.20 0.60 2.40 0.37 3.00 39 3278H-6X-0.40     
0.50 0.25 0.75 3.00 0.45 3.00 39 3278H-6X-0.50     
0.60 0.30 0.90 3.60 0.55 3.00 39 3278H-6X-0.60     
0.70 0.35 1.05 4.20 0.65 3.00 39 3278H-6X-0.70     
0.80 0.40 1.20 4.80 0.75 3.00 39 3278H-6X-0.80     
0.90 0.45 1.35 5.40 0.85 3.00 39 3278H-6X-0.90     
1.00 0.50 1.50 6.00 0.95 3.00 39 3278H-6X-1.00     
1.10 0.55 1.65 6.60 1.05 3.00 39 3278H-6X-1.10     
1.20 0.60 1.80 7.20 1.15 3.00 39 3278H-6X-1.20     
1.30 0.65 1.95 7.80 1.25 3.00 39 3278H-6X-1.30     
1.40 0.70 2.10 8.40 1.35 3.00 39 3278H-6X-1.40     
1.50 0.75 2.25 9.00 1.45 3.00 39 3278H-6X-1.50     
1.60 0.80 2.40 9.60 1.55 3.00 39 3278H-6X-1.60     
1.70 0.85 2.55 10.20 1.65 3.00 39 3278H-6X-1.70     
1.80 0.90 2.70 10.80 1.75 3.00 39 3278H-6X-1.80     
1.90 0.95 2.85 11.40 1.85 3.00 39 3278H-6X-1.90     
2.00 1.00 3.00 12.00 1.95 6.00 50 3278H-6X-2.00     
2.10 1.05 3.15 12.60 2.05 6.00 50 3278H-6X-2.10     
2.20 1.10 3.30 13.20 2.15 6.00 50 3278H-6X-2.20     
2.30 1.15 3.45 13.80 2.25 6.00 50 3278H-6X-2.30     
2.40 1.20 3.60 14.40 2.35 6.00 50 3278H-6X-2.40     
2.50 1.25 3.75 15.00 2.45 6.00 50 3278H-6X-2.50     
3.00 1.50 4.50 18.00 2.95 6.00 50 3278H-6X-3.00     
