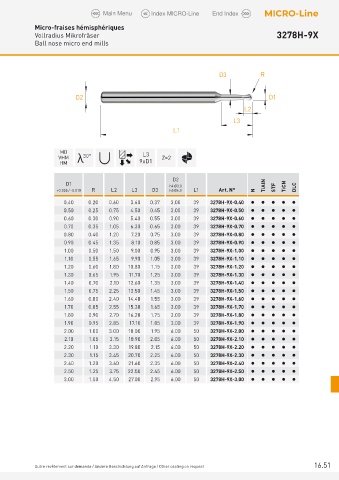

Micro-fraises hémisphériques
Vollradius Mikrofräser 3278H-9X
Ball nose micro end mills

D3 R

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Z=2
HM 9xD1
D2
D1 h4 Ø3.0 TiAlN
+0.005 / -0.010 R L 2 L 3 D 3 h5 Ø6.0 L1 Art. N° N STF TiCN DLC
0.40 0.20 0.60 3.60 0.37 3.00 39 3278H-9X-0.40     
0.50 0.25 0.75 4.50 0.45 3.00 39 3278H-9X-0.50     
0.60 0.30 0.90 5.40 0.55 3.00 39 3278H-9X-0.60     
0.70 0.35 1.05 6.30 0.65 3.00 39 3278H-9X-0.70     
0.80 0.40 1.20 7.20 0.75 3.00 39 3278H-9X-0.80     
0.90 0.45 1.35 8.10 0.85 3.00 39 3278H-9X-0.90     
1.00 0.50 1.50 9.00 0.95 3.00 39 3278H-9X-1.00     
1.10 0.55 1.65 9.90 1.05 3.00 39 3278H-9X-1.10     
1.20 0.60 1.80 10.80 1.15 3.00 39 3278H-9X-1.20     
1.30 0.65 1.95 11.70 1.25 3.00 39 3278H-9X-1.30     
1.40 0.70 2.10 12.60 1.35 3.00 39 3278H-9X-1.40     
1.50 0.75 2.25 13.50 1.45 3.00 39 3278H-9X-1.50     
1.60 0.80 2.40 14.40 1.55 3.00 39 3278H-9X-1.60     
1.70 0.85 2.55 15.30 1.65 3.00 39 3278H-9X-1.70     
1.80 0.90 2.70 16.20 1.75 3.00 39 3278H-9X-1.80     
1.90 0.95 2.85 17.10 1.85 3.00 39 3278H-9X-1.90     
2.00 1.00 3.00 18.00 1.95 6.00 50 3278H-9X-2.00     
2.10 1.05 3.15 18.90 2.05 6.00 50 3278H-9X-2.10     
2.20 1.10 3.30 19.80 2.15 6.00 50 3278H-9X-2.20     
2.30 1.15 3.45 20.70 2.25 6.00 50 3278H-9X-2.30     
2.40 1.20 3.60 21.60 2.35 6.00 50 3278H-9X-2.40     
2.50 1.25 3.75 22.50 2.45 6.00 50 3278H-9X-2.50     
3.00 1.50 4.50 27.00 2.95 6.00 50 3278H-9X-3.00     

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.51
