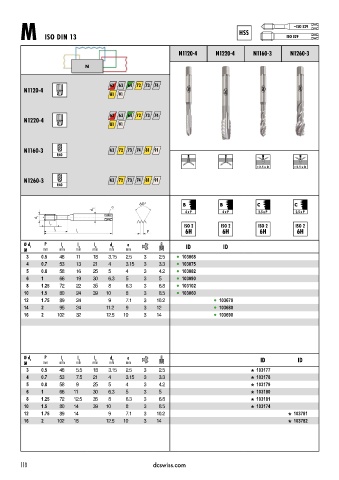

Page 121 - DC_SWISS(Catalogue_TM_ES-EN)

~ ISO 529
HSS
M ISO DIN 13 ISO 529

N1120 4 N1220 4 N1160 3 N1260 3

N

62 63 72 73 74
N1120-4
81 91

62 63 72 73 74
N1220-4
81 91

N1160-3 63 72 73 74 81 91
R40

< 2.5 x D < 2.5 x D

N1260-3 63 72 73 74 81 91
R40

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
M mm mm mm mm mm mm
3 0.5 48 11 18 3.15 2.5 3 2.5 l 103068
4 0.7 53 13 21 4 3.15 3 3.3 l 103075
5 0.8 58 16 25 5 4 3 4.2 l 103082
6 1 66 19 30 6.3 5 3 5 l 103090
8 1.25 72 22 35 8 6.3 3 6.8 l 103102
10 1.5 80 24 39 10 8 3 8.5 l 103060
12 1.75 89 24 9 7.1 3 10.2 l 103670
14 2 95 24 11.2 9 3 12 l 103680
16 2 102 32 12.5 10 3 14 l 103690

Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
M mm mm mm mm mm mm
3 0.5 48 5.5 18 3.15 2.5 3 2.5 103177
4 0.7 53 7.5 21 4 3.15 3 3.3 103178
5 0.8 58 9 25 5 4 3 4.2 103179
6 1 66 11 30 6.3 5 3 5 103180
8 1.25 72 12.5 35 8 6.3 3 6.8 103181
10 1.5 80 14 39 10 8 3 8.5 103174
12 1.75 89 14 9 7.1 3 10.2 103781
16 2 102 18 12.5 10 3 14 103782
