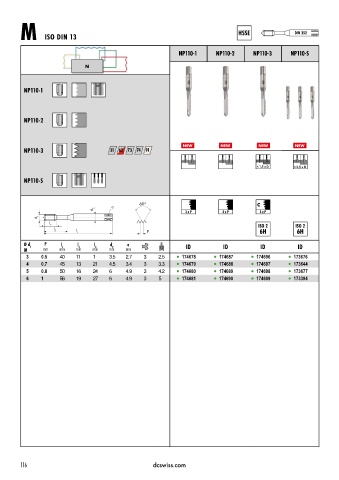

Page 119 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 352
M ISO DIN 13

NP110 1 NP110 2 NP110 3 NP110 S

N

NP110-1

NP110-2

NEW
NEW NEW NEW NEW
NEW
NEW
NEW
NP110-3 31 62 73 74 91
< 1.5 x D < 2.5 x D
NP110-S

C
a
d 2
3 x P 3 x P 3 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
3 0.5 40 11 18 3.5 2.7 3 2.5 l 174678 l 174687 l 174696 l 173676
4 0.7 45 13 21 4.5 3.4 3 3.3 l 174679 l 174688 l 174697 l 173644
5 0.8 50 16 24 6 4.9 3 4.2 l 174680 l 174689 l 174698 l 173677
6 1 56 19 27 6 4.9 3 5 l 174681 l 174690 l 174699 l 173394
