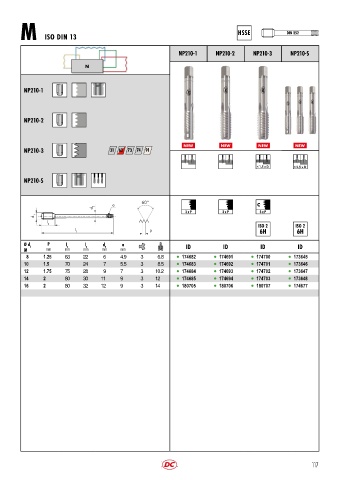

Page 120 - DC_SWISS(Catalogue_TM_ES-EN)
P. 120
HSSE DIN 352
M ISO DIN 13
NP210 1 NP210 2 NP210 3 NP210 S
N
NP210-1
NP210-2
NEW
NEW NEW NEW NEW
NEW
NEW
NEW
NP210-3 31 62 73 74 91
< 1.5 x D < 2.5 x D
NP210-S
a C
d 2
3 x P 3 x P 3 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
8 1.25 63 22 6 4.9 3 6.8 l 174682 l 174691 l 174700 l 173645
10 1.5 70 24 7 5.5 3 8.5 l 174683 l 174692 l 174701 l 173646
12 1.75 75 28 9 7 3 10.2 l 174684 l 174693 l 174702 l 173647
14 2 80 30 11 9 3 12 l 174685 l 174694 l 174703 l 173648
16 2 80 32 12 9 3 14 l 180705 l 180706 l 180707 l 174677
