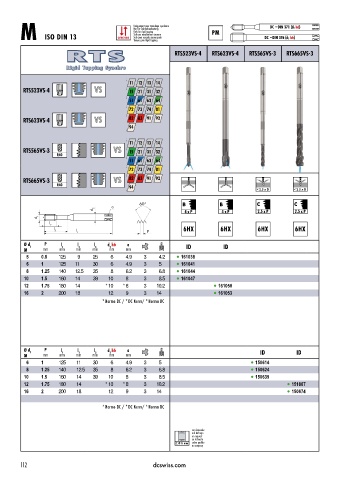

Page 115 - DC_SWISS(Catalogue_TM_ES-EN)

Uniquement pour taraudage synchrone
~
Nur für Sychronbearbeitung DC DIN 371 (d2 h6)
Only for rigid tapping PM
M ISO DIN 13 SYNCHRO Solo per maschiatura sincrona DC DIN 376 (d2 h6)
Solo para roscado sincronizado
~
Только для ridgid tapping
RT S RTS523VS 4 RTS623VS 4 RTS565VS 3 RTS665VS 3
Rigid Tapping Sy nc hro

11 12 13 14
RTS523VS-4 VS 15 21 31 32
51 61 63
72 73 74 81

RTS623VS-4 VS 82 83 91 92
94

11 12 13 14
RTS565VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81

RTS665VS-3 VS 82 83 91 92
R40 94 < 2.5 x D < 2.5 x D

B B C C
a
d 2 4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d h6 a ID ID
2
M mm mm mm mm mm mm
5 0.8 125 9 25 6 4.9 3 4.2 l 161038
6 1 125 11 30 6 4.9 3 5 l 161041
8 1.25 140 12.5 35 8 6.2 3 6.8 l 161044
10 1.5 160 14 39 10 8 3 8.5 l 161047
12 1.75 180 14 * 10 * 8 3 10.2 l 161050
16 2 200 18 12 9 3 14 l 161053
* Norme DC / * DC Norm/ * Norma DC

Ø d 1 P l 1 l 2 l 3 d h6 a ID ID
2
M mm mm mm mm mm mm
6 1 125 11 30 6 4.9 3 5 l 150614
8 1.25 140 12.5 35 8 6.2 3 6.8 l 150624
10 1.5 160 14 39 10 8 3 8.5 l 150639
12 1.75 180 14 * 10 * 8 3 10.2 l 151867
16 2 200 18 12 9 3 14 l 150674

* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
по запросу
112 dcswiss.com
