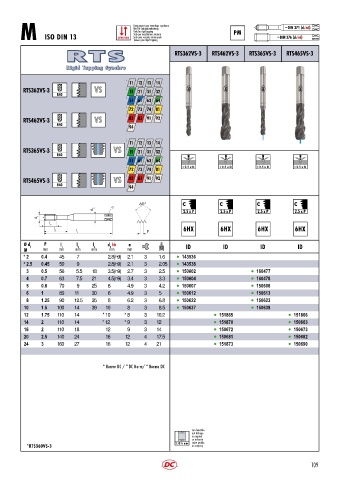

Page 112 - DC_SWISS(Catalogue_TM_ES-EN)

Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung ~ DIN 371 (d2 h6)
Only for rigid tapping PM
M ISO DIN 13 SYNCHRO Solo per maschiatura sincrona ~ DIN 376 (d2 h6)
Solo para roscado sincronizado
Только для ridgid tapping
RT S RTS362VS 3 RTS462VS 3 RTS365VS 3 RTS465VS 3

Rigid Tapping Sy nc hro

11 12 13 14
RTS362VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81

RTS462VS-3 VS 82 83 91 92
R40
94

11 12 13 14
RTS365VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81 < 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

RTS465VS-3 VS 82 83 91 92
R40 94

C C C C
a
d 2 2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d h6 a ID ID ID ID
2
M mm mm mm mm mm mm
* 2 0.4 45 7 2.8(h9) 2.1 3 1.6 l 143536
* 2.5 0.45 50 9 2.8(h9) 2.1 3 2.05 l 143538
3 0.5 56 5.5 18 3.5(h9) 2.7 3 2.5 l 150602 l 160477
4 0.7 63 7.5 21 4.5(h9) 3.4 3 3.3 l 150604 l 160478
5 0.8 70 9 25 6 4.9 3 4.2 l 150607 l 150608
6 1 80 11 30 6 4.9 3 5 l 150612 l 150613
8 1.25 90 12.5 35 8 6.2 3 6.8 l 150622 l 150623
10 1.5 100 14 39 10 8 3 8.5 l 150637 l 150638
12 1.75 110 14 * 10 * 8 3 10.2 l 151865 l 151866
14 2 110 14 * 12 * 9 3 12 l 151870 l 150663
16 2 110 18 12 9 3 14 l 150672 l 150673
20 2.5 140 24 16 12 4 17.5 l 150681 l 150682
24 3 160 27 16 12 4 21 l 151873 l 150690

* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
*RTS360VS-3 по запросу
