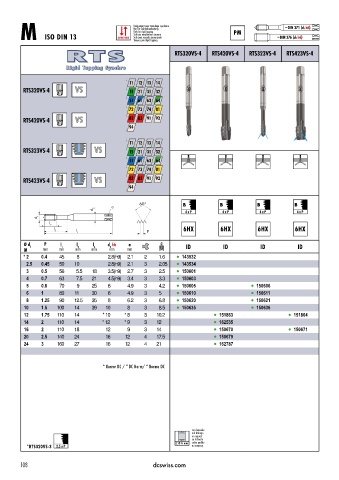

Page 111 - DC_SWISS(Catalogue_TM_ES-EN)

Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung ~ DIN 371 (d2 h6)
Only for rigid tapping PM
M ISO DIN 13 SYNCHRO Solo per maschiatura sincrona ~ DIN 376 (d2 h6)
Solo para roscado sincronizado
Только для ridgid tapping
RT S RTS320VS 4 RTS420VS 4 RTS323VS 4 RTS423VS 4

Rigid Tapping Sy nc hro

11 12 13 14
RTS320VS-4 VS 15 21 31 32
51 61 63
72 73 74 81

RTS420VS-4 VS 82 83 91 92
94

11 12 13 14
RTS323VS-4 VS 15 21 31 32
51 61 63
72 73 74 81

RTS423VS-4 VS 82 83 91 92
94

B B B B
a
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d h6 a ID ID ID ID
2
M mm mm mm mm mm mm
* 2 0.4 45 8 2.8(h9) 2.1 2 1.6 l 143532
2.5 0.45 50 10 2.8(h9) 2.1 3 2.05 l 143534
3 0.5 56 5.5 18 3.5(h9) 2.7 3 2.5 l 150601
4 0.7 63 7.5 21 4.5(h9) 3.4 3 3.3 l 150603
5 0.8 70 9 25 6 4.9 3 4.2 l 150605 l 150606
6 1 80 11 30 6 4.9 3 5 l 150610 l 150611
8 1.25 90 12.5 35 8 6.2 3 6.8 l 150620 l 150621
10 1.5 100 14 39 10 8 3 8.5 l 150635 l 150636
12 1.75 110 14 * 10 * 8 3 10.2 l 151863 l 151864
14 2 110 14 * 12 * 9 3 12 l 162535
16 2 110 18 12 9 3 14 l 150670 l 150671
20 2.5 140 24 16 12 4 17.5 l 150679
24 3 160 27 16 12 4 21 l 162787

* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
*RTS320VS-3 2.5 x P по запросу
