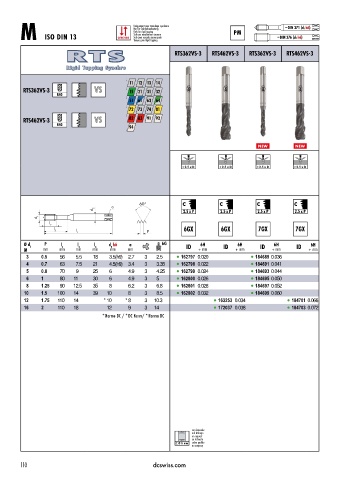

Page 113 - DC_SWISS(Catalogue_TM_ES-EN)

Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung ~ DIN 371 (d2 h6)
Only for rigid tapping PM
M ISO DIN 13 SYNCHRO Solo per maschiatura sincrona ~ DIN 376 (d2 h6)
Solo para roscado sincronizado
Только для ridgid tapping
RT S RTS362VS 3 RTS462VS 3 RTS362VS 3 RTS462VS 3

Rigid Tapping Sy nc hro

11 12 13 14
RTS362VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81

RTS462VS-3 VS 82 83 91 92
R40
94

NEW NEW
NEW
NEW
< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

C C C C
a
d 2 2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d h6 a 6G ID 6H ID 6H ID 6H ID 6H
2
M mm mm mm mm mm mm + mm + mm + mm + mm
3 0.5 56 5.5 18 3.5(h9) 2.7 3 2.5 l 162797 0.020 l 184689 0.036
4 0.7 63 7.5 21 4.5(h9) 3.4 3 3.35 l 162798 0.022 l 184691 0.041
5 0.8 70 9 25 6 4.9 3 4.25 l 162799 0.024 l 184693 0.044
6 1 80 11 30 6 4.9 3 5 l 162800 0.026 l 184695 0.050
8 1.25 90 12.5 35 8 6.2 3 6.8 l 162801 0.028 l 184697 0.052
10 1.5 100 14 39 10 8 3 8.5 l 162802 0.032 l 184699 0.060
12 1.75 110 14 * 10 * 8 3 10.3 l 163253 0.034 l 184701 0.066
16 2 110 18 12 9 3 14 l 172037 0.038 l 184703 0.072
* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
по запросу
110 dcswiss.com
