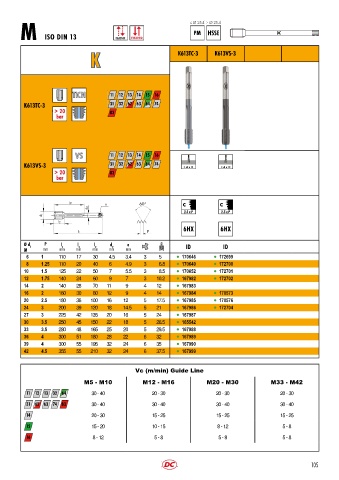

Page 108 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 25.4 > Ø 25.4
PM HSSE DC
M ISO DIN 13 CLASSIC SYNCHRO

K K613TC 3 K613VS 3

TiCN 11 12 13 14 15 16
K613TC-3 31 32 62 63 74
83

VS 11 12 13 14 15 16
K613VS-3 31 32 62 63 74 < 4 x D < 4 x D
83

C C
2.5 x P 2.5 x P

P

Ø d 1 P l 1 l 2 l 9 d 2 a ID ID
M mm mm mm mm mm mm
6 1 110 17 30 4.5 3.4 3 5 l 170646 l 172699
8 1.25 110 20 40 6 4.9 3 6.8 l 170649 l 172700
10 1.5 125 22 50 7 5.5 3 8.5 l 170652 l 172701
12 1.75 140 24 60 9 7 3 10.2 l 167982 l 172702
14 2 140 28 70 11 9 4 12 l 167983
16 2 160 30 80 12 9 4 14 l 167984 l 170573
20 2.5 180 36 100 16 12 5 17.5 l 167985 l 170576
24 3 200 39 120 18 14.5 5 21 l 167986 l 172704
27 3 225 42 135 20 16 5 24 l 167987
30 3.5 250 45 150 22 18 5 26.5 l 165542
33 3.5 280 48 165 25 20 5 29.5 l 167988
36 4 300 51 180 28 22 6 32 l 167989
39 4 300 55 195 32 24 6 35 l 167990
42 4.5 355 55 210 32 24 6 37.5 l 167999

Vc (m/min) Guide Line

M5 - M10 M12 - M16 M20 - M30 M33 - M42

11 12 13 32 30 - 40 20 - 30 20 - 30 20 - 30
31 62 63 74 83 30 - 40 30 - 40 30 - 40 30 - 40
14 20 - 30 15 - 25 15 - 25 15 - 25

15 15 - 20 10 - 15 8 - 12 5 - 8
16 8 - 12 5 - 8 5 - 8 5 - 8

105
