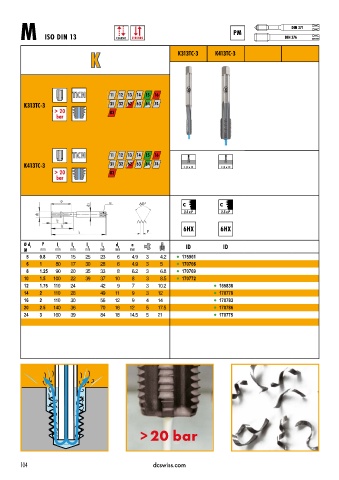

Page 107 - DC_SWISS(Catalogue_TM_ES-EN)
P. 107
DIN 371
PM
M ISO DIN 13 CLASSIC SYNCHRO DIN 376
K K313TC 3 K413TC 3
TiCN 11 12 13 14 15 16
K313TC-3 31 32 62 63 74
83
TiCN 11 12 13 14 15 16
K413TC-3 31 32 62 63 74 < 3 x D < 3 x D
83
C C
2.5 x P 2.5 x P
P
Ø d 1 P l 1 l 2 l 3 l 9 d 2 a ID ID
M mm mm mm mm mm mm mm
5 0.8 70 15 25 23 6 4.9 3 4.2 l 175961
6 1 80 17 30 28 6 4.9 3 5 l 170766
8 1.25 90 20 35 33 8 6.2 3 6.8 l 170769
10 1.5 100 22 39 37 10 8 3 8.5 l 170772
12 1.75 110 24 42 9 7 3 10.2 l 165838
14 2 110 28 49 11 9 3 12 l 170778
16 2 110 30 56 12 9 4 14 l 170783
20 2.5 140 36 70 16 12 5 17.5 l 170786
24 3 160 39 84 18 14.5 5 21 l 170775
> 20 bar
104 dcswiss.com
