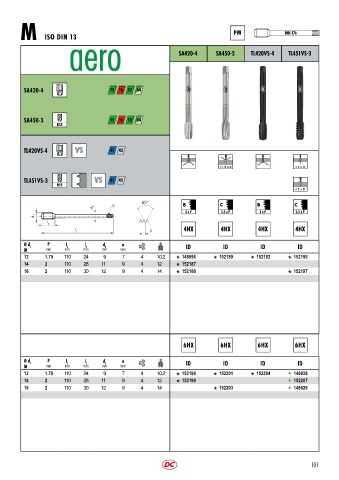

P. 104
PM DIN 376
M ISO DIN 13
SA420 4 SA450 3 TL420VS 4 TL451VS 3
SA420-4 15 16 52
SA450-3 15 16 52
R15
TL420VS-4 VS 41 42
< 1.5 x D < 2 x D
TL451VS-3 VS 41 42
R15
< 2 x D
a B C B C
d 2
4 x P 2.5 x P 4 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
12 1.75 110 24 9 7 4 10.2 148096 152189 152192 152195
14 2 110 28 11 9 4 12 152187
16 2 110 30 12 9 4 14 152188 152197
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
12 1.75 110 24 9 7 4 10.2 152198 152201 152204 l 148028
14 2 110 28 11 9 4 12 152199 l 152207
16 2 110 30 12 9 4 14 152203 l 148029
101
