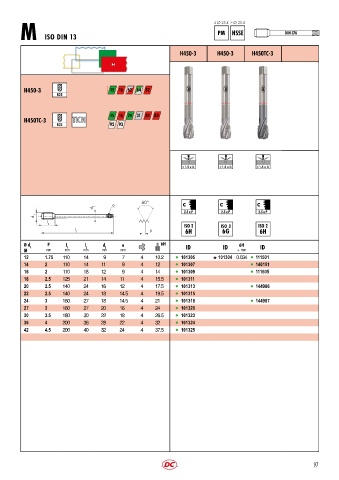

P. 100
≤ Ø 25.4 > Ø 25.4
PM HSSE DIN 376
M ISO DIN 13
H450«3 H450«3 H450TC«3
H
H450-3 15 16 62 82
R25
H450TC-3 TiCN 15 16 24 31 82 83
R25 92 93
< 1.5 x D < 1.5 x D < 1.5 x D
a C C C
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a 6H ID ID 6H ID
M mm mm mm mm mm + mm
12 1.75 110 14 9 7 4 10.2 l 101305 101304 0.034 l 111501
14 2 110 14 11 9 4 12 l 101307 l 146151
16 2 110 18 12 9 4 14 l 101309 l 111605
18 2.5 125 21 14 11 4 15.5 l 101311
20 2.5 140 24 16 12 4 17.5 l 101313 l 144986
22 2.5 140 24 18 14.5 4 19.5 l 101315
24 3 160 27 18 14.5 4 21 l 101318 l 144987
27 3 160 27 20 16 4 24 l 101320
30 3.5 180 30 22 18 4 26.5 l 101323
36 4 200 36 28 22 4 32 l 101324
42 4.5 200 40 32 24 4 37.5 l 101325
97
