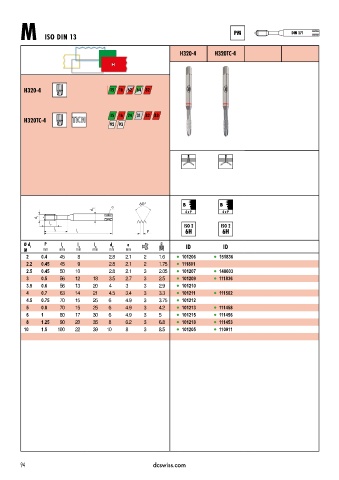

Page 97 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 371
M ISO DIN 13

H320«4 H320TC«4
H

H320-4 15 16 62 82

H320TC-4 TiCN 15 16 24 31 82 83
92 93

B B
a
d 2
4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
M mm mm mm mm mm mm
2 0.4 45 8 2.8 2.1 2 1.6 l 101206 l 151836
2.2 0.45 45 9 2.8 2.1 2 1.75 l 111801
2.5 0.45 50 10 2.8 2.1 3 2.05 l 101207 l 148603
3 0.5 56 12 18 3.5 2.7 3 2.5 l 101209 l 111836
3.5 0.6 56 13 20 4 3 3 2.9 l 101210
4 0.7 63 14 21 4.5 3.4 3 3.3 l 101211 l 111502
4.5 0.75 70 15 25 6 4.9 3 3.75 l 101212
5 0.8 70 15 25 6 4.9 3 4.2 l 101213 l 111458
6 1 80 17 30 6 4.9 3 5 l 101215 l 111456
8 1.25 90 20 35 8 6.2 3 6.8 l 101218 l 111453
10 1.5 100 22 39 10 8 3 8.5 l 101205 l 110911
