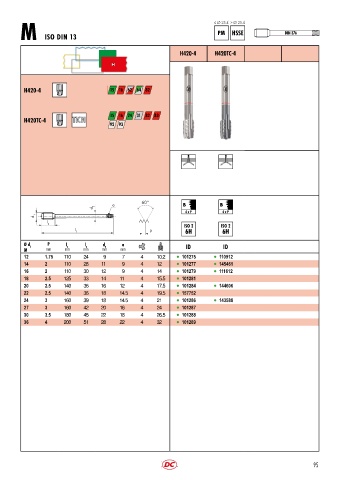

P. 98
≤ Ø 25.4 > Ø 25.4
PM HSSE DIN 376
M ISO DIN 13
H420«4 H420TC«4
H
H420-4 15 16 62 82
H420TC-4 TiCN 15 16 24 31 82 83
92 93
a B B
d 2
4 x P 4 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID
M mm mm mm mm mm
12 1.75 110 24 9 7 4 10.2 l 101275 l 110912
14 2 110 28 11 9 4 12 l 101277 l 145461
16 2 110 30 12 9 4 14 l 101279 l 111612
18 2.5 125 33 14 11 4 15.5 l 101281
20 2.5 140 36 16 12 4 17.5 l 101284 l 144606
22 2.5 140 36 18 14.5 4 19.5 l 157752
24 3 160 39 18 14.5 4 21 l 101286 l 143588
27 3 160 42 20 16 4 24 l 101287
30 3.5 180 45 22 18 4 26.5 l 101288
36 4 200 51 28 22 4 32 l 101289
95
