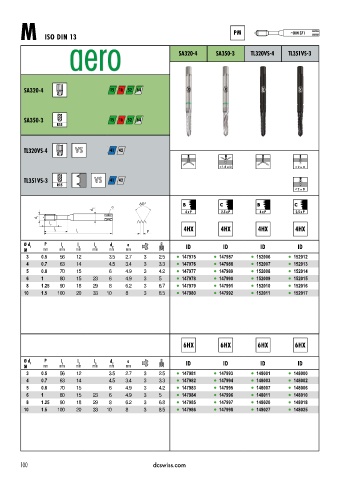

Page 103 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 371
M ISO DIN 13 ~

SA320«4 SA350«3 TL320VS«4 TL351VS«3

SA320-4 15 16 52

SA350-3 15 16 52
R15

TL320VS-4 VS 41 42

< 1.5 x D < 2 x D

TL351VS-3 VS 41 42
R15
< 2 x D

B C B C
a
d 2
4 x P 2.5 x P 4 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
3 0.5 56 12 3.5 2.7 3 2.5 l 147975 l 147987 l 152006 l 152012
4 0.7 63 14 4.5 3.4 3 3.3 l 147976 l 147988 l 152007 l 152013
5 0.8 70 15 6 4.9 3 4.2 l 147977 l 147989 l 152008 l 152014
6 1 80 15 23 6 4.9 3 5 l 147978 l 147990 l 152009 l 152015
8 1.25 90 18 29 8 6.2 3 6.7 l 147979 l 147991 l 152010 l 152016
10 1.5 100 20 33 10 8 3 8.5 l 147980 l 147992 l 152011 l 152017

Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
3 0.5 56 12 3.5 2.7 3 2.5 l 147981 l 147993 l 148001 l 148000
4 0.7 63 14 4.5 3.4 3 3.3 l 147982 l 147994 l 148003 l 148002
5 0.8 70 15 6 4.9 3 4.2 l 147983 l 147995 l 148007 l 148006
6 1 80 15 23 6 4.9 3 5 l 147984 l 147996 l 148011 l 148010
8 1.25 90 18 29 8 6.2 3 6.8 l 147985 l 147997 l 148020 l 148018
10 1.5 100 20 33 10 8 3 8.5 l 147986 l 147998 l 148027 l 148025

100 dcswiss.com
