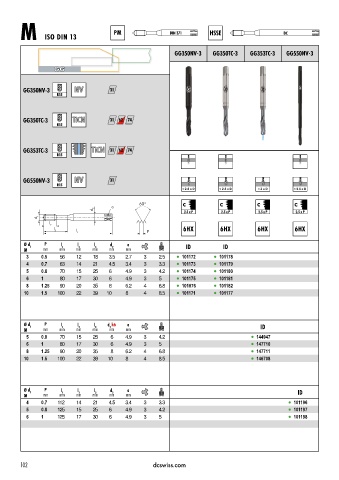

Page 105 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 371 HSSE DC
M ISO DIN 13

GG350NV 3 GG350TC 3 GG353TC 3 GG550NV 3

GG350NV-3 NV 31
R15

GG350TC-3 TiCN 31 62 74
R15

GG353TC-3 TiCN 31 62 74
R15

GG550NV-3 NV 31
R15
< 2.5 x D < 2.5 x D < 3 x D < 2.5 x D

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
M mm mm mm mm mm mm
3 0.5 56 12 18 3.5 2.7 3 2.5 l 101172 l 101178
4 0.7 63 14 21 4.5 3.4 3 3.3 l 101173 l 101179
5 0.8 70 15 25 6 4.9 3 4.2 l 101174 l 101180
6 1 80 17 30 6 4.9 3 5 l 101175 l 101181
8 1.25 90 20 35 8 6.2 4 6.8 l 101076 l 101182
10 1.5 100 22 39 10 8 4 8.5 l 101171 l 101177

Ø d 1 P l 1 l 2 l 3 d h6 a ID
2
M mm mm mm mm mm mm
5 0.8 70 15 25 6 4.9 3 4.2 l 144947
6 1 80 17 30 6 4.9 3 5 l 147710
8 1.25 90 20 35 8 6.2 4 6.8 l 147711
10 1.5 100 22 39 10 8 4 8.5 l 146708

Ø d 1 P l 1 l 2 l 3 d 2 a ID
M mm mm mm mm mm mm
4 0.7 112 14 21 4.5 3.4 3 3.3 l 101196
5 0.8 125 15 25 6 4.9 3 4.2 l 101197
6 1 125 17 30 6 4.9 3 5 l 101198

102 dcswiss.com
