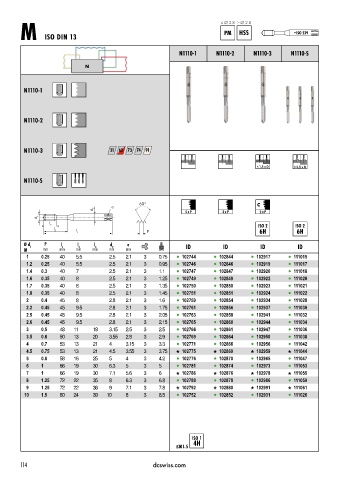

Page 117 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSS ~ ISO 529
M ISO DIN 13

N1110 1 N1110 2 N1110 3 N1110 S

N

N1110-1

N1110-2

N1110-3 31 62 73 74 91

< 1.5 x D < 2.5 x D

N1110-S

C
a
d 2
5 x P 3 x P 2 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
1 0.25 40 5.5 2.5 2.1 3 0.75 l 102744 l 102844 l 102917 l 111015
1.2 0.25 40 5.5 2.5 2.1 3 0.95 l 102746 l 102846 l 102919 l 111017
1.4 0.3 40 7 2.5 2.1 3 1.1 l 102747 l 102847 l 102920 l 111018
1.6 0.35 40 8 2.5 2.1 3 1.25 l 102749 l 102849 l 102922 l 111020
1.7 0.35 40 8 2.5 2.1 3 1.35 l 102750 l 102850 l 102923 l 111021
1.8 0.35 40 8 2.5 2.1 3 1.45 l 102751 l 102851 l 102924 l 111022
2 0.4 45 8 2.8 2.1 3 1.6 l 102759 l 102854 l 102934 l 111028
2.2 0.45 45 9.5 2.8 2.1 3 1.75 l 102761 l 102856 l 102937 l 111030
2.5 0.45 45 9.5 2.8 2.1 3 2.05 l 102763 l 102858 l 102941 l 111032
2.6 0.45 45 9.5 2.8 2.1 3 2.15 l 102765 l 102860 l 102944 l 111034
3 0.5 48 11 18 3.15 2.5 3 2.5 l 102766 l 102861 l 102947 l 111036
3.5 0.6 50 13 20 3.55 2.8 3 2.9 l 102769 l 102864 l 102950 l 111038
4 0.7 53 13 21 4 3.15 3 3.3 l 102771 l 102866 l 102956 l 111042
4.5 0.75 53 13 21 4.5 3.55 3 3.75 102775 102869 102959 111044
5 0.8 58 16 25 5 4 3 4.2 l 102776 l 102870 l 102965 l 111047
6 1 66 19 30 6.3 5 3 5 l 102781 l 102874 l 102973 l 111053
7 1 66 19 30 7.1 5.6 3 6 102786 102876 102978 111055
8 1.25 72 22 35 8 6.3 3 6.8 l 102788 l 102878 l 102986 l 111059
9 1.25 72 22 36 9 7.1 3 7.8 102792 102880 102991 111061
10 1.5 80 24 39 10 8 3 8.5 l 102752 l 102852 l 102931 l 111026

≤M1.5
