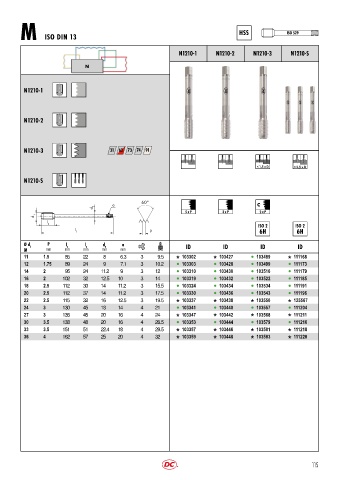

Page 118 - DC_SWISS(Catalogue_TM_ES-EN)

HSS ISO 529
M ISO DIN 13

N1210 1 N1210 2 N1210 3 N1210 S

N

N1210-1

N1210-2

N1210-3 31 62 73 74 91

< 1.5 x D < 2.5 x D

N1210-S

a C
d 2
5 x P 3 x P 2 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
11 1.5 85 22 8 6.3 3 9.5 103302 103427 l 103489 111168
12 1.75 89 24 9 7.1 3 10.2 l 103303 l 103428 l 103499 l 111173
14 2 95 24 11.2 9 3 12 l 103310 l 103430 l 103510 l 111179
16 2 102 32 12.5 10 3 14 l 103319 l 103432 l 103522 l 111185
18 2.5 112 30 14 11.2 3 15.5 l 103324 l 103434 l 103534 l 111191
20 2.5 112 37 14 11.2 3 17.5 l 103330 l 103436 l 103543 l 111196
22 2.5 115 32 16 12.5 3 19.5 103337 103438 103550 125567
24 3 130 45 18 14 4 21 l 103341 l 103440 l 103557 l 111204
27 3 135 45 20 16 4 24 103347 103442 103568 111211
30 3.5 138 48 20 16 4 26.5 l 103353 l 103444 l 103579 l 111216
33 3.5 151 51 22.4 18 4 29.5 103357 103446 103581 111218
36 4 162 57 25 20 4 32 103359 103448 103583 111220

115
