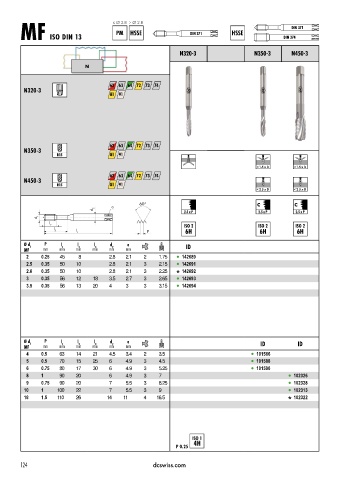

Page 127 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
DIN 371
PM HSSE DIN 371 HSSE
MF ISO DIN 13 DIN 374

N320 3 N350 3 N450 3

N

62 63 72 73 74
N320-3
81 91

62 63 72 73 74
N350-3
R15 81 91

< 1.5 x D < 1.5 x D
62 63 72 73 74
N450-3
R15 81 91
< 2.5 x D < 2.5 x D

C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID
MF mm mm mm mm mm mm
2 0.25 45 8 2.8 2.1 2 1.75 l 142689
2.5 0.35 50 10 2.8 2.1 3 2.15 l 142691
2.6 0.35 50 10 2.8 2.1 3 2.25 142692
3 0.35 56 12 18 3.5 2.7 3 2.65 l 142693
3.5 0.35 56 13 20 4 3 3 3.15 l 142694

Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
MF mm mm mm mm mm mm
4 0.5 63 14 21 4.5 3.4 2 3.5 l 101586
5 0.5 70 15 25 6 4.9 3 4.5 l 101588
6 0.75 80 17 30 6 4.9 3 5.25 l 101590
8 1 90 20 6 4.9 3 7 l 102326
9 0.75 90 20 7 5.5 3 8.25 l 102328
10 1 100 22 7 5.5 3 9 l 102313
18 1.5 110 26 14 11 4 16.5 102322

P 0.25
