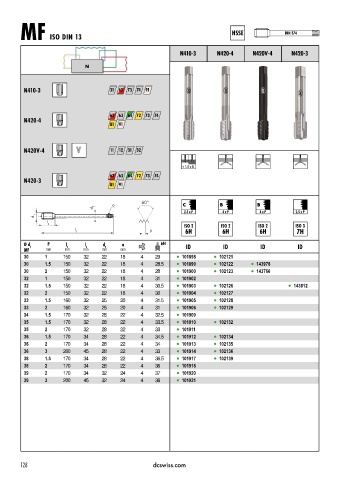

Page 131 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 374
MF ISO DIN 13

N410 3 N420 4 N420V 4 N420 3

N

N410-3 31 62 73 74 91

62 63 72 73 74
N420-4
81 91

N420V-4 V 11 12 31 32

< 1.5 x D
62 63 72 73 74
N420-3
81 91

a C B B
d 2
2.5 x P 4 x P 4 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a 6H ID ID ID ID
MF mm mm mm mm mm
30 1 150 32 22 18 4 29 l 101898 l 102121
30 1.5 150 32 22 18 4 28.5 l 101899 l 102122 l 143978
30 2 150 32 22 18 4 28 l 101900 l 102123 l 143766
32 1 150 32 22 18 4 31 l 101902
32 1.5 150 32 22 18 4 30.5 l 101903 l 102126 l 143812
32 2 150 32 22 18 4 30 l 101904 l 102127
33 1.5 160 32 25 20 4 31.5 l 101905 l 102128
33 2 160 32 25 20 4 31 l 101906 l 102129
34 1.5 170 32 28 22 4 32.5 l 101909
35 1.5 170 32 28 22 4 33.5 l 101910 l 102132
35 2 170 32 28 22 4 33 l 101911
36 1.5 170 34 28 22 4 34.5 l 101912 l 102134
36 2 170 34 28 22 4 34 l 101913 l 102135
36 3 200 45 28 22 4 33 l 101914 l 102136
38 1.5 170 34 28 22 4 36.5 l 101917 l 102139
38 2 170 34 28 22 4 36 l 101918
39 2 170 34 32 24 4 37 l 101920
39 3 200 45 32 24 4 36 l 101921

128 dcswiss.com
