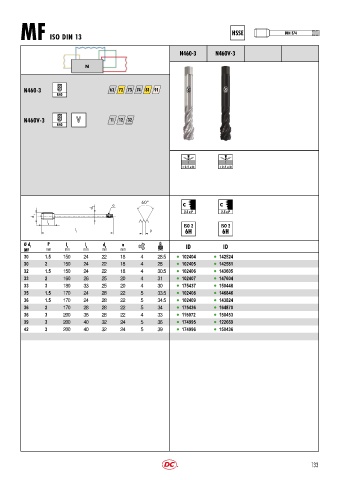

Page 136 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 374
MF ISO DIN 13

N460 3 N460V 3

N

N460-3 63 72 73 74 81 91
R40

N460V-3 V 11 12 32
R40

< 2.5 x D < 2.5 x D

a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID
MF mm mm mm mm mm
30 1.5 150 24 22 18 4 28.5 l 102404 l 142524
30 2 150 24 22 18 4 28 l 102405 l 142581
32 1.5 150 24 22 18 4 30.5 l 102406 l 143605
33 2 160 26 25 20 4 31 l 102407 l 147604
33 3 180 33 25 20 4 30 l 175437 l 150448
35 1.5 170 24 28 22 5 33.5 l 102408 l 146846
36 1.5 170 24 28 22 5 34.5 l 102409 l 143824
36 2 170 28 28 22 5 34 l 175436 l 164870
36 3 200 36 28 22 4 33 l 115072 l 150453
39 3 200 40 32 24 5 36 l 174995 l 122669
42 3 200 40 32 24 5 39 l 174996 l 150436

133
