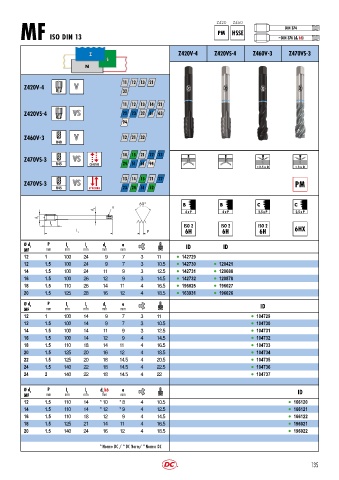

Page 138 - DC_SWISS(Catalogue_TM_ES-EN)

Z420 Z460
DIN 374
PM HSSE
MF ISO DIN 13 ~ DIN 376 (d2 h6)

Z Z420V 4 Z420VS 4 Z460V 3 Z470VS 3
S
N

Z420V-4 V 11 12 13 21
32

11 12 13 14 21
Z420VS 4 VS 22 23 32 61 63
94

Z460V 3 V 12 21 32
R40

Z470VS-3 VS 14 15 21 22 23
R45 CLASSIC 24 51 61 94
< 2.5 x D < 3 x D

Z470VS-3 VS 13 14 15 21 22 PM
R45 SYNCHRO 23 24 51 52

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l P
1
Ø d 1 P l 1 l 2 d 2 a ID ID
MF mm mm mm mm mm
12 1 100 24 9 7 3 11 l 142729
12 1.5 100 24 9 7 3 10.5 l 142730 l 120421
14 1.5 100 24 11 9 3 12.5 l 142731 l 120688
16 1.5 100 26 12 9 3 14.5 l 142732 l 120878
18 1.5 110 26 14 11 4 16.5 l 196025 l 196027
20 1.5 125 28 16 12 4 18.5 l 163931 l 196026

Ø d 1 P l 1 l 2 d 2 a ID
MF mm mm mm mm mm
12 1 100 14 9 7 3 11 l 104729
12 1.5 100 14 9 7 3 10.5 l 104730
14 1.5 100 14 11 9 3 12.5 l 104731
16 1.5 100 14 12 9 4 14.5 l 104732
18 1.5 110 18 14 11 4 16.5 l 104733
20 1.5 125 20 16 12 4 18.5 l 104734
22 1.5 125 20 18 14.5 4 20.5 l 104735
24 1.5 140 22 18 14.5 4 22.5 l 104736
24 2 140 22 18 14.5 4 22 l 104737

Ø d 1 P l 1 l 2 d h6 a ID
2
MF mm mm mm mm mm
12 1.5 110 14 * 10 * 8 4 10.5 l 166120
14 1.5 110 14 * 12 * 9 4 12.5 l 166121
16 1.5 110 18 12 9 4 14.5 l 166122
18 1.5 125 21 14 11 4 16.5 l 196021
20 1.5 140 24 16 12 4 18.5 l 196022

* Norme DC / * DC Norm/ * Norma DC
