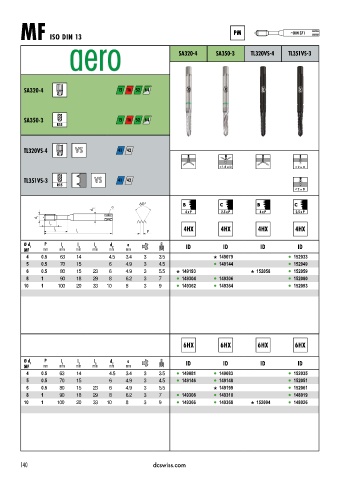

Page 143 - DC_SWISS(Catalogue_TM_ES-EN)

PM DIN 371
PM
MF ISO DIN 13 ~

SA320 4 SA350 3 TL320VS 4 TL351VS 3

SA320-4 15 16 52

SA350-3 15 16 52
R15

TL320VS-4 VS 41 42

< 1.5 x D < 2 x D

TL351VS-3 VS 41 42
R15
< 2 x D

B C B C
a
d 2
4 x P 2.5 x P 4 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
MF mm mm mm mm mm mm
4 0.5 63 14 4.5 3.4 3 3.5 149079 l 152033
5 0.5 70 15 6 4.9 3 4.5 l 149144 l 152049
6 0.5 80 15 23 6 4.9 3 5.5 149193 152058 l 152059
8 1 90 18 29 8 6.2 3 7 l 149304 l 149306 l 152080
10 1 100 20 33 10 8 3 9 l 149362 l 149364 l 152093

Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
MF mm mm mm mm mm mm
4 0.5 63 14 4.5 3.4 3 3.5 l 149081 l 149083 l 152035
5 0.5 70 15 6 4.9 3 4.5 l 149146 l 149148 l 152051
6 0.5 80 15 23 6 4.9 3 5.5 149199 l 152061
8 1 90 18 29 8 6.2 3 7 l 149308 l 149310 l 148019
10 1 100 20 33 10 8 3 9 l 149366 l 149368 152094 l 148026

140 dcswiss.com
