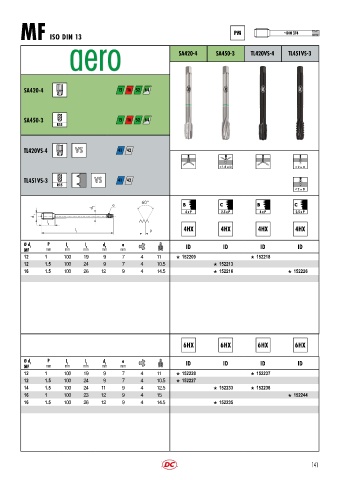

P. 144
PM DIN 374
MF ISO DIN 13 ~
SA420 4 SA450 3 TL420VS 4 TL451VS 3
SA420-4 15 16 52
SA450-3 15 16 52
R15
TL420VS-4 VS 41 42
< 1.5 x D < 2 x D
TL451VS-3 VS 41 42
R15
< 2 x D
a B C B C
d 2
4 x P 2.5 x P 4 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
MF mm mm mm mm mm
12 1 100 19 9 7 4 11 152209 152218
12 1.5 100 24 9 7 4 10.5 152213
16 1.5 100 26 12 9 4 14.5 152216 152226
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
MF mm mm mm mm mm
12 1 100 19 9 7 4 11 152228 152237
12 1.5 100 24 9 7 4 10.5 152227
14 1.5 100 24 11 9 4 12.5 152233 152238
16 1 100 23 12 9 4 15 152244
16 1.5 100 26 12 9 4 14.5 152235
141
