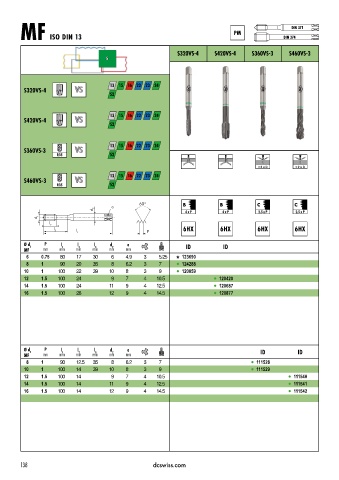

Page 141 - DC_SWISS(Catalogue_TM_ES-EN)
P. 141
DIN 371
PM
MF ISO DIN 13 DIN 374
S320VS 4 S420VS 4 S360VS 3 S460VS 3
S
S320VS-4 VS 13 15 16 22 23 24
52
S420VS-4 VS 13 15 16 22 23 24
52
S360VS-3 VS 13 15 16 22 23 24
R35 52
< 2 x D < 2 x D
S460VS-3 VS 13 15 16 22 23 24
R35 52
B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
MF mm mm mm mm mm mm
6 0.75 80 17 30 6 4.9 3 5.25 123690
8 1 90 20 35 8 6.2 3 7 l 124288
10 1 100 22 39 10 8 3 9 l 120059
12 1.5 100 24 9 7 4 10.5 l 120420
14 1.5 100 24 11 9 4 12.5 l 120687
16 1.5 100 26 12 9 4 14.5 l 120877
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
MF mm mm mm mm mm mm
8 1 90 12.5 35 8 6.2 3 7 l 111528
10 1 100 14 39 10 8 3 9 l 111529
12 1.5 100 14 9 7 4 10.5 l 111540
14 1.5 100 14 11 9 4 12.5 l 111541
16 1.5 100 14 12 9 4 14.5 l 111542
138 dcswiss.com
