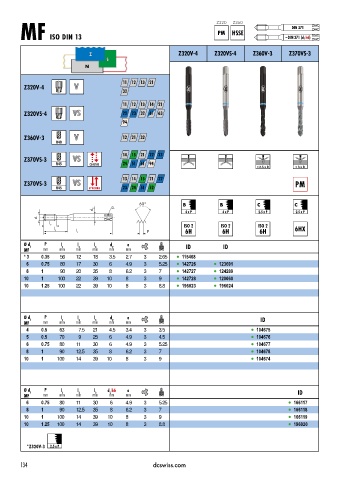

Page 137 - DC_SWISS(Catalogue_TM_ES-EN)

Z320 Z360
DIN 371
PM HSSE
MF ISO DIN 13 ~ DIN 371 (d2 h6)

Z Z320V 4 Z320VS 4 Z360V 3 Z370VS 3
S
N

Z320V-4 V 11 12 13 21
32

11 12 13 14 21
Z320VS 4 VS 22 23 32 61 63
94

Z360V 3 V 12 21 32
R40

Z370VS-3 VS 14 15 21 22 23
R45 CLASSIC 24 51 61 94
< 2.5 x D < 3 x D

Z370VS-3 VS 13 14 15 21 22 PM
R45 SYNCHRO 23 24 51 52

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
MF mm mm mm mm mm mm
* 3 0.35 56 12 18 3.5 2.7 3 2.65 l 115468
6 0.75 80 17 30 6 4.9 3 5.25 l 142726 l 123691
8 1 90 20 35 8 6.2 3 7 l 142727 l 124289
10 1 100 22 39 10 8 3 9 l 142728 l 120060
10 1.25 100 22 39 10 8 3 8.8 l 196023 l 196024

Ø d 1 P l 1 l 2 l 3 d 2 a ID
MF mm mm mm mm mm mm
4 0.5 63 7.5 21 4.5 3.4 3 3.5 l 104675
5 0.5 70 9 25 6 4.9 3 4.5 l 104676
6 0.75 80 11 30 6 4.9 3 5.25 l 104677
8 1 90 12.5 35 8 6.2 3 7 l 104678
10 1 100 14 39 10 8 3 9 l 104674

Ø d 1 P l 1 l 2 l 3 d h6 a ID
2
MF mm mm mm mm mm mm
6 0.75 80 11 30 6 4.9 3 5.25 l 166117
8 1 90 12.5 35 8 6.2 3 7 l 166118
10 1 100 14 39 10 8 3 9 l 166119
10 1.25 100 14 39 10 8 3 8.8 l 196020

*Z320V-3 2.5 x P

134 dcswiss.com
