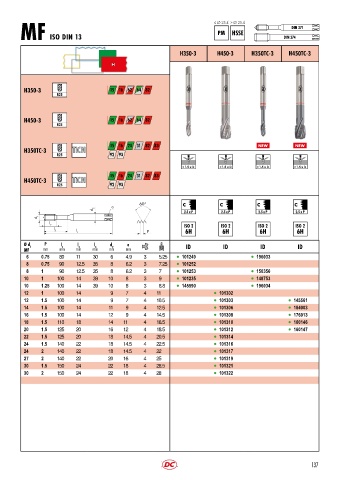

Page 140 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 25.4 > Ø 25.4
DIN 371
PM HSSE
MF ISO DIN 13 DIN 374

H350 3 H450 3 H350TC-3 H450TC-3
H

H350-3 15 16 62 82
R25

H450-3 15 16 62 82
R25

NEW
NEW
H350TC 3 TiCN 15 16 24 31 82 83 NEW NEW
R25 92 93
< 1.5 x D < 1.5 x D < 1.5 x D < 1.5 x D

H450TC 3 TiCN 15 16 24 31 82 83
R25 92 93

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
MF mm mm mm mm mm mm
6 0.75 80 11 30 6 4.9 3 5.25 l 101249 l 196033
8 0.75 90 12.5 35 8 6.2 3 7.25 l 101252
8 1 90 12.5 35 8 6.2 3 7 l 101253 l 150356
10 1 100 14 39 10 8 3 9 l 101235 l 148753
10 1.25 100 14 39 10 8 3 8.8 l 145590 l 196034
12 1 100 14 9 7 4 11 l 101302
12 1.5 100 14 9 7 4 10.5 l 101303 l 145561
14 1.5 100 14 11 9 4 12.5 l 101306 l 184003
16 1.5 100 14 12 9 4 14.5 l 101308 l 176013
18 1.5 110 18 14 11 4 16.5 l 101310 l 160146
20 1.5 125 20 16 12 4 18.5 l 101312 l 160147
22 1.5 125 20 18 14.5 4 20.5 l 101314
24 1.5 140 22 18 14.5 4 22.5 l 101316
24 2 140 22 18 14.5 4 22 l 101317
27 2 140 22 20 16 4 25 l 101319
30 1.5 150 24 22 18 4 28.5 l 101321
30 2 150 24 22 18 4 28 l 101322

137
