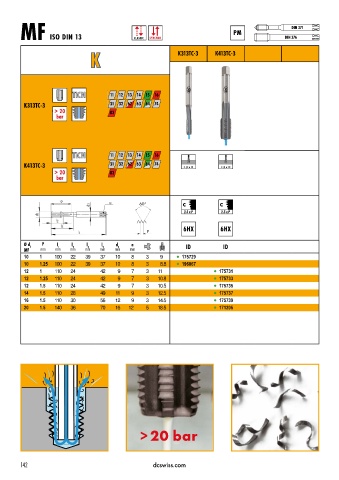

P. 145
DIN 371
PM
MF ISO DIN 13 CLASSIC SYNCHRO DIN 376
K K313TC 3 K413TC 3
TiCN 11 12 13 14 15 16
K313TC-3 31 32 62 63 74
83
TiCN 11 12 13 14 15 16
K413TC-3 31 32 62 63 74 < 3 x D < 3 x D
83
C C
2.5 x P 2.5 x P
P
Ø d 1 P l 1 l 2 l 3 l 9 d 2 a ID ID
MF mm mm mm mm mm mm mm
10 1 100 22 39 37 10 8 3 9 l 175729
10 1.25 100 22 39 37 10 8 3 8.8 l 196067
12 1 110 24 42 9 7 3 11 l 175731
12 1.25 110 24 42 9 7 3 10.8 l 175733
12 1.5 110 24 42 9 7 3 10.5 l 175735
14 1.5 110 28 49 11 9 3 12.5 l 175737
16 1.5 110 30 56 12 9 3 14.5 l 175739
20 1.5 140 36 70 16 12 5 18.5 l 171205
> 20 bar
142 dcswiss.com
