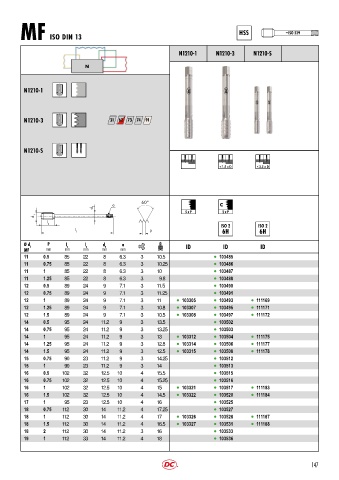

Page 150 - DC_SWISS(Catalogue_TM_ES-EN)

HSS ~ ISO 529
MF ISO DIN 13

N1210 1 N1210 3 N1210 S

N

N1210-1

N1210-3 31 62 73 74 91

N1210-S

< 1.5 x D < 2.5 x D

a C
d 2
5 x P 2 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID
MF mm mm mm mm mm
11 0.5 85 22 8 6.3 3 10.5 l 103485
11 0.75 85 22 8 6.3 3 10.25 l 103486
11 1 85 22 8 6.3 3 10 l 103487
11 1.25 85 22 8 6.3 3 9.8 l 103488
12 0.5 89 24 9 7.1 3 11.5 l 103490
12 0.75 89 24 9 7.1 3 11.25 l 103491
12 1 89 24 9 7.1 3 11 l 103305 l 103493 l 111169
12 1.25 89 24 9 7.1 3 10.8 l 103307 l 103495 l 111171
12 1.5 89 24 9 7.1 3 10.5 l 103308 l 103497 l 111172
14 0.5 95 24 11.2 9 3 13.5 l 103502
14 0.75 95 24 11.2 9 3 13.25 l 103503
14 1 95 24 11.2 9 3 13 l 103312 l 103504 l 111175
14 1.25 95 24 11.2 9 3 12.8 l 103314 l 103506 l 111177
14 1.5 95 24 11.2 9 3 12.5 l 103315 l 103508 l 111178
15 0.75 90 23 11.2 9 3 14.25 l 103512
15 1 90 23 11.2 9 3 14 l 103513
16 0.5 102 32 12.5 10 4 15.5 l 103515
16 0.75 102 32 12.5 10 4 15.25 l 103516
16 1 102 32 12.5 10 4 15 l 103321 l 103517 l 111183
16 1.5 102 32 12.5 10 4 14.5 l 103322 l 103520 l 111184
17 1 95 23 12.5 10 4 16 l 103525
18 0.75 112 30 14 11.2 4 17.25 l 103527
18 1 112 30 14 11.2 4 17 l 103326 l 103528 l 111187
18 1.5 112 30 14 11.2 4 16.5 l 103327 l 103531 l 111188
18 2 112 30 14 11.2 3 16 l 103533
19 1 112 33 14 11.2 4 18 l 103536
