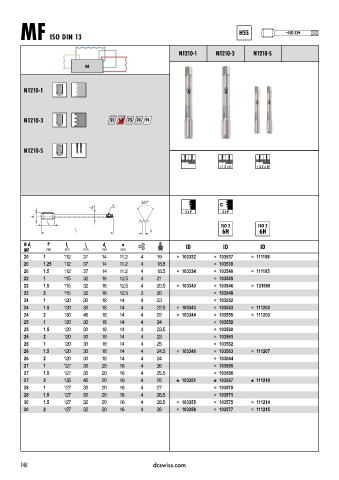

Page 151 - DC_SWISS(Catalogue_TM_ES-EN)

HSS ~ ISO 529
MF ISO DIN 13

N1210 1 N1210 3 N1210 S

N

N1210-1

N1210-3 31 62 73 74 91

N1210-S

< 1.5 x D < 2.5 x D

a C
d 2
5 x P 2 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID
MF mm mm mm mm mm
20 1 112 37 14 11.2 4 19 l 103332 l 103537 l 111198
20 1.25 112 37 14 11.2 4 18.8 l 103539
20 1.5 112 37 14 11.2 4 18.5 l 103334 l 103540 l 111195
22 1 115 32 16 12.5 4 21 l 103545
22 1.5 115 32 16 12.5 4 20.5 l 103340 l 103546 l 121669
22 2 115 32 16 12.5 3 20 l 103548
24 1 120 30 18 14 4 23 l 103552
24 1.5 120 30 18 14 4 22.5 l 103343 l 103553 l 111202
24 2 130 45 18 14 4 22 l 103344 l 103555 l 111203
25 1 120 30 18 14 4 24 l 103559
25 1.5 120 30 18 14 4 23.5 l 103560
25 2 120 30 18 14 4 23 l 103561
26 1 120 30 18 14 4 25 l 103562
26 1.5 120 30 18 14 4 24.5 l 103346 l 103563 l 111207
26 2 120 30 18 14 4 24 l 103564
27 1 127 30 20 16 4 26 l 103565
27 1.5 127 30 20 16 4 25.5 l 103566
27 2 135 45 20 16 4 25 103351 103567 111210
28 1 127 30 20 16 4 27 l 103570
28 1.5 127 30 20 16 4 26.5 l 103571
30 1.5 127 32 20 16 4 28.5 l 103355 l 103575 l 111214
30 2 127 32 20 16 4 28 l 103356 l 103577 l 111215
