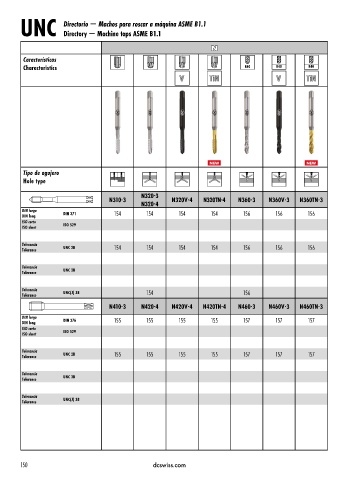

Directorio Machos para roscar a máquina ASME B1.1
UNC Directory Machine taps ASME B1.1
N
Características
Characteristics R40 R40 R40
V TiN V TiN
NEW NEW
Tipo de agujero
Hole type
N320 3
N310 3 N320V 4 N320TN 4 N360 3 N360V 3 N360TN 3
N320 4
DIN largo
DIN long DIN 371 154 154 154 154 156 156 156
ISO corto
ISO short ISO 529
Tolerancia UNC 2B 154 154 154 154 156 156 156
Tolerance
Tolerancia
Tolerance UNC 3B
Tolerancia UNC(J) 3B 154 156
Tolerance
N410 3 N420 4 N420V 4 N420TN 4 N460 3 N460V 3 N460TN 3
DIN largo
DIN long DIN 376 155 155 155 155 157 157 157
ISO corto
ISO short ISO 529
Tolerancia UNC 2B 155 155 155 155 157 157 157
Tolerance
Tolerancia
Tolerance UNC 3B
Tolerancia
Tolerance UNC(J) 3B
