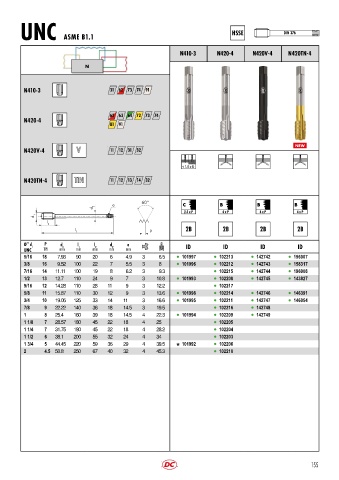

Page 158 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
UNC ASME B1.1

N410 3 N420 4 N420V 4 N420TN 4

N

N410-3 31 62 73 74 91

62 63 72 73 74
N420-4
81 91

NEW
N420V-4 V 11 12 31 32 NEW

< 1.5 x D

N420TN 4 TiN 11 12 13 14 32

a C B B B
d 2
2.5 x P 4 x P 4 x P 4 x P
d 1
l 2
l
1 P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm
5/16 18 7.93 90 20 6 4.9 3 6.5 l 101997 l 102213 l 142742 l 196007
3/8 16 9.52 100 22 7 5.5 3 8 l 101996 l 102212 l 142743 l 158317
7/16 14 11.11 100 19 8 6.2 3 9.3 l 102215 l 142744 l 196008
1/2 13 12.7 110 24 9 7 3 10.8 l 101993 l 102208 l 142745 l 143827
9/16 12 14.28 110 28 11 9 3 12.2 l 102217
5/8 11 15.87 110 30 12 9 3 13.6 l 101998 l 102214 l 142746 l 146391
3/4 10 19.05 125 33 14 11 3 16.6 l 101995 l 102211 l 142747 l 146054
7/8 9 22.22 140 36 18 14.5 3 19.5 l 102216 l 142748
1 8 25.4 160 39 18 14.5 4 22.3 l 101994 l 102209 l 142749
1 1/8 7 28.57 180 45 22 18 4 25 l 102205
1 1/4 7 31.75 180 45 22 18 4 28.2 l 102204
1 1/2 6 38.1 200 55 32 24 4 34 l 102203
1 3/4 5 44.45 220 59 36 29 4 39.5 101992 l 102206
2 4.5 50.8 250 67 40 32 4 45.3 l 102210

155
