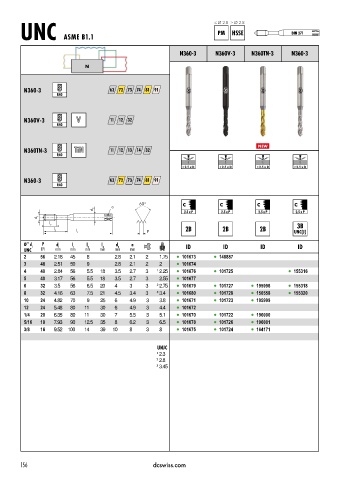

Page 159 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
UNC ASME B1.1

N360 3 N360V 3 N360TN 3 N360 3

N

N360-3 63 72 73 74 81 91
R40

N360V-3 V 11 12 32
R40

NEW
N360TN-3 TiN 11 12 13 14 32 NEW
R40
< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

N360-3 63 72 73 74 81 91
R40

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
2 56 2.18 45 8 2.8 2.1 2 1.75 l 101673 l 148887
3 48 2.51 50 9 2.8 2.1 2 2 l 101674
4 40 2.84 56 5.5 18 3.5 2.7 3 1 2.25 l 101676 l 101725 l 155316
5 40 3.17 56 5.5 18 3.5 2.7 3 2.55 l 101677
6 32 3.5 56 6.5 20 4 3 3 2 2.75 l 101679 l 101727 l 195998 l 155318
8 32 4.16 63 7.5 21 4.5 3.4 3 3 3.4 l 101680 l 101728 l 150558 l 155320
10 24 4.82 70 9 25 6 4.9 3 3.8 l 101671 l 101723 l 195999
12 24 5.48 80 11 30 6 4.9 3 4.4 l 101672
1/4 20 6.35 80 11 30 7 5.5 3 5.1 l 101670 l 101722 l 196000
5/16 18 7.93 90 12.5 35 8 6.2 3 6.5 l 101678 l 101726 l 196001
3/8 16 9.52 100 14 39 10 8 3 8 l 101675 l 101724 l 164171

UNJC
1 2.30
2 2.80
3 3.45

156 dcswiss.com
