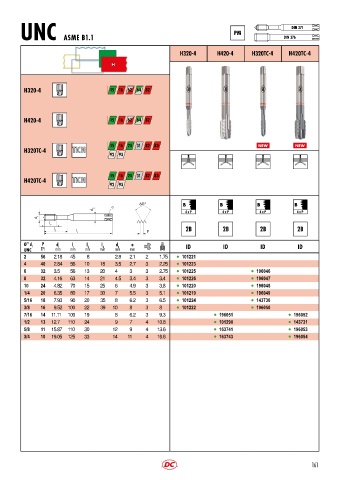

Page 164 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 371
PM
UNC ASME B1.1 DIN 376

H320 4 H420 4 H320TC 4 H420TC-4
H

H320-4 15 16 62 82

H420-4 15 16 62 82

NEW
NEW
H320TC-4 TiCN 15 16 24 31 82 83 NEW NEW
92 93

H420TC-4 TiCN 15 16 24 31 82 83
92 93

B B B B
a
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
2 56 2.18 45 8 2.8 2.1 2 1.75 l 101221
4 40 2.84 56 10 18 3.5 2.7 3 2.25 l 101223
6 32 3.5 56 13 20 4 3 3 2.75 l 101225 l 196046
8 32 4.16 63 14 21 4.5 3.4 3 3.4 l 101226 l 196047
10 24 4.82 70 15 25 6 4.9 3 3.8 l 101220 l 196048
1/4 20 6.35 80 17 30 7 5.5 3 5.1 l 101219 l 196049
5/16 18 7.93 90 20 35 8 6.2 3 6.5 l 101224 l 143730
3/8 16 9.52 100 22 39 10 8 3 8 l 101222 l 196050
7/16 14 11.11 100 19 8 6.2 3 9.3 l 196051 l 196052
1/2 13 12.7 110 24 9 7 4 10.8 l 101290 l 143731
5/8 11 15.87 110 30 12 9 4 13.6 l 163741 l 196053
3/4 10 19.05 125 33 14 11 4 16.6 l 163743 l 196054

161
